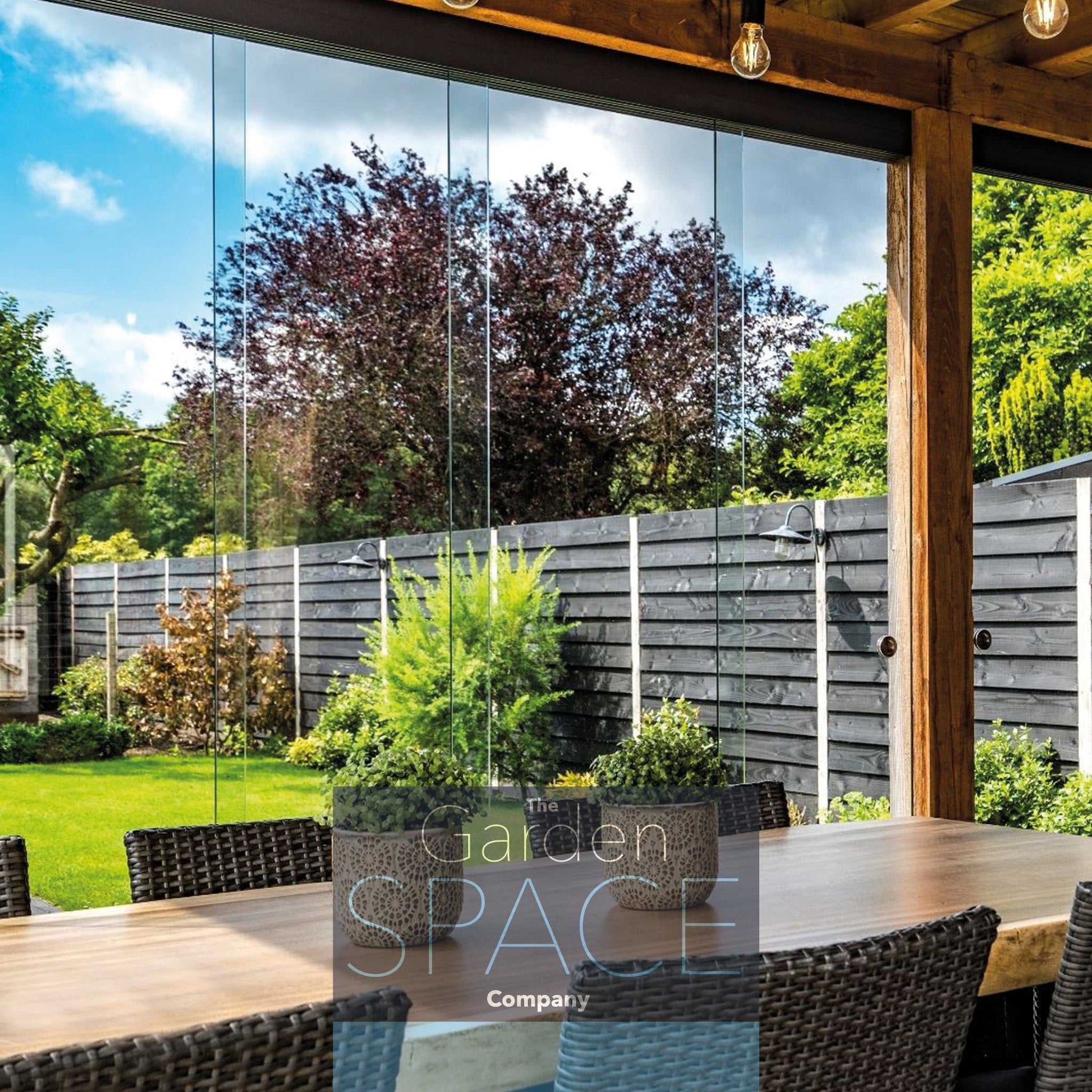

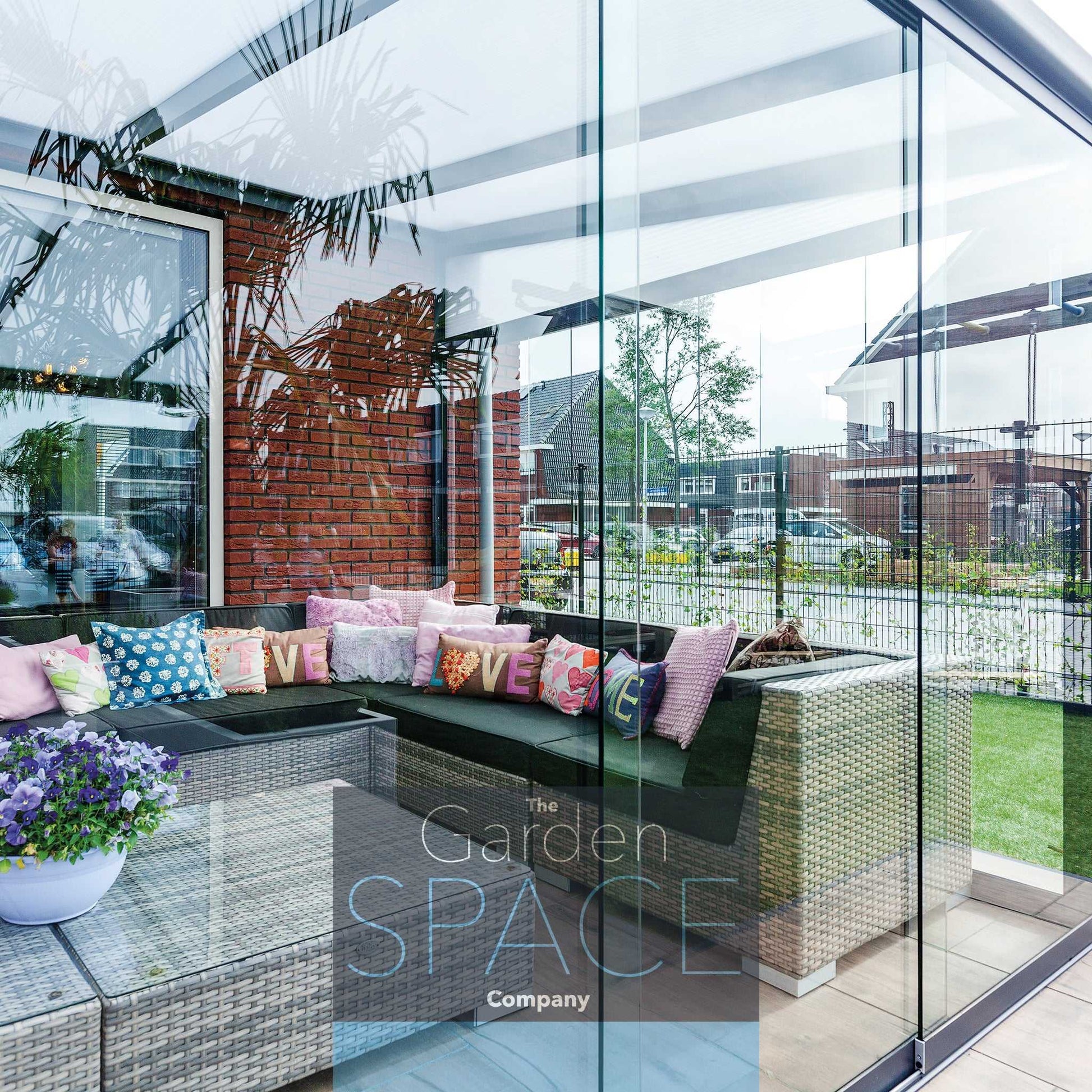

Glass Sliding Door Kit

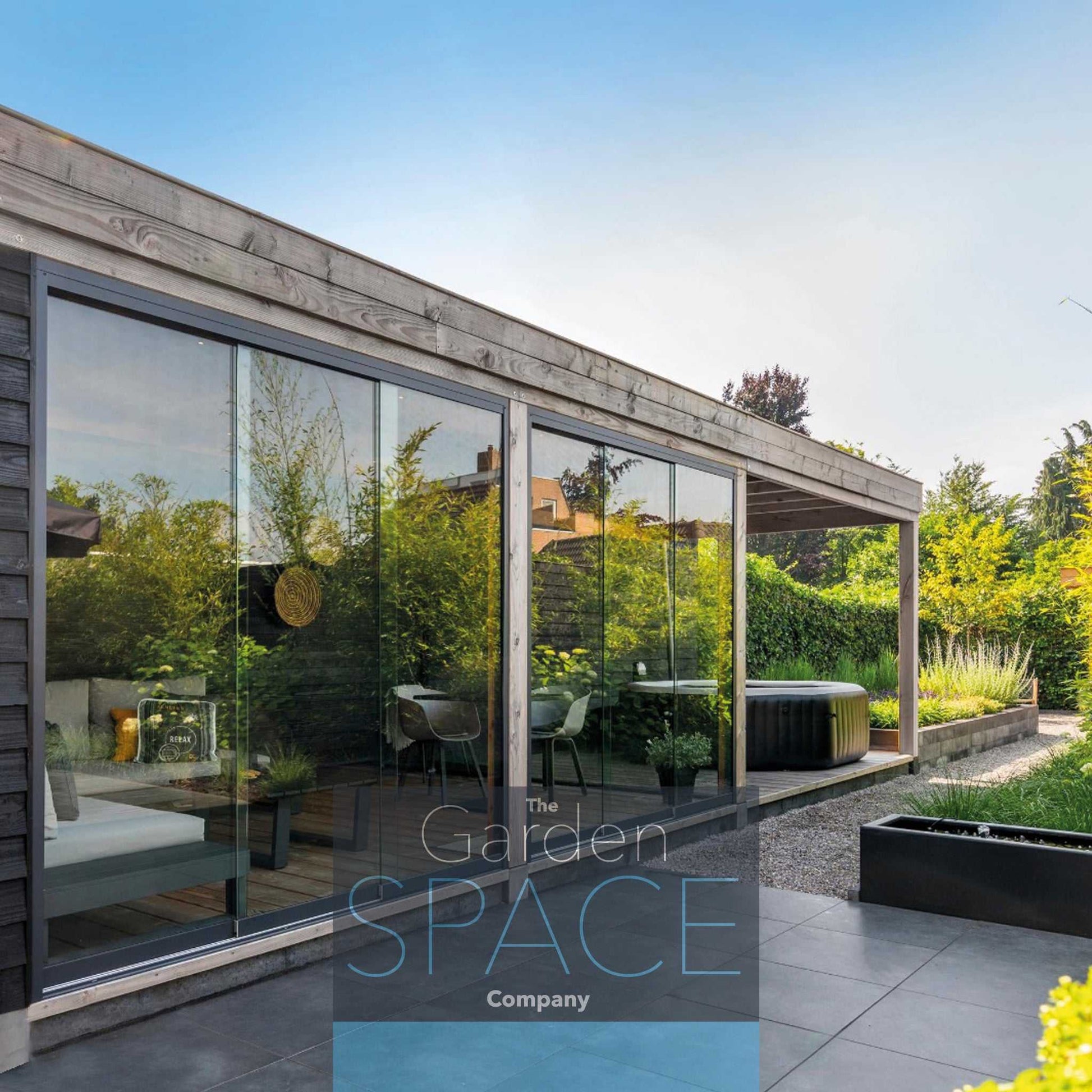

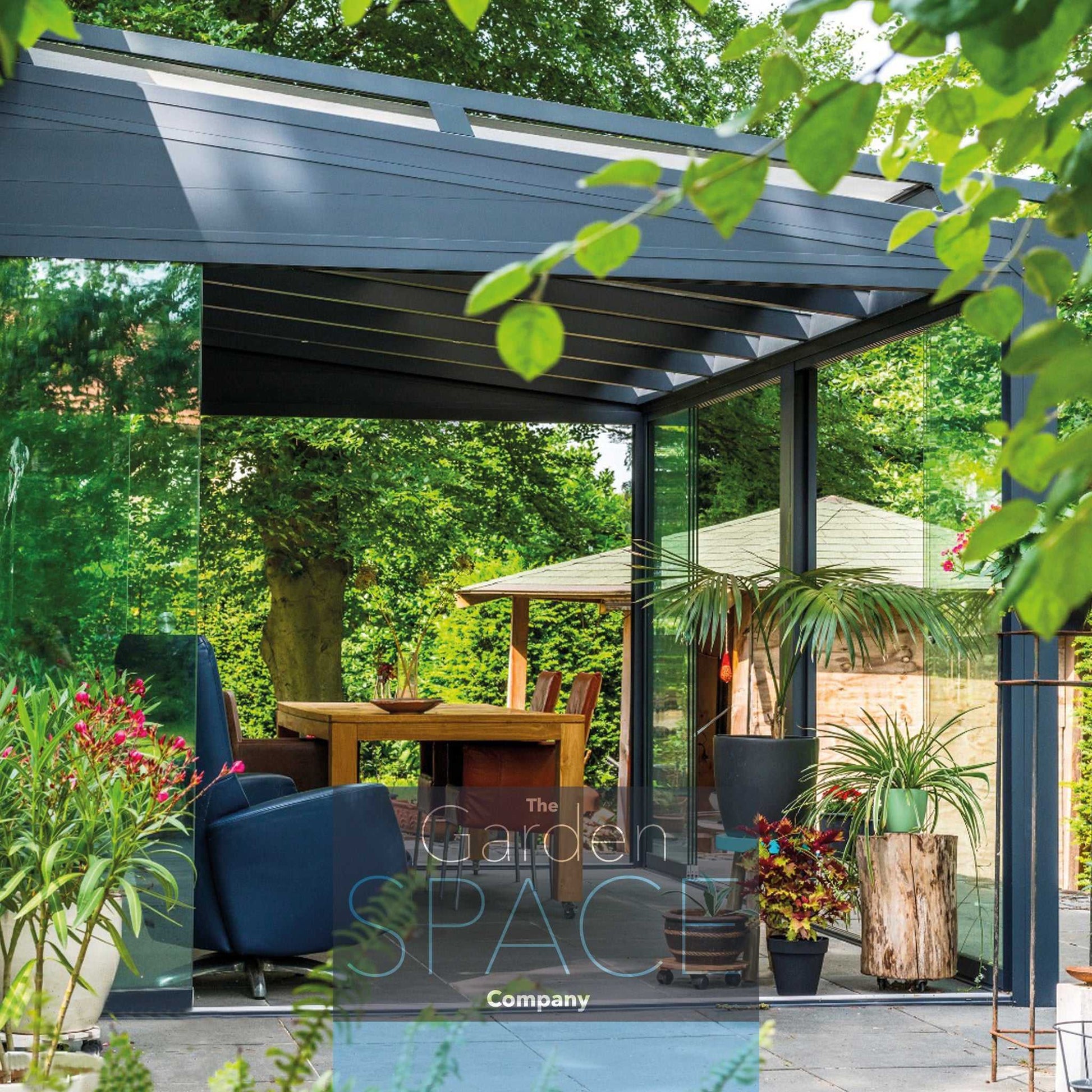

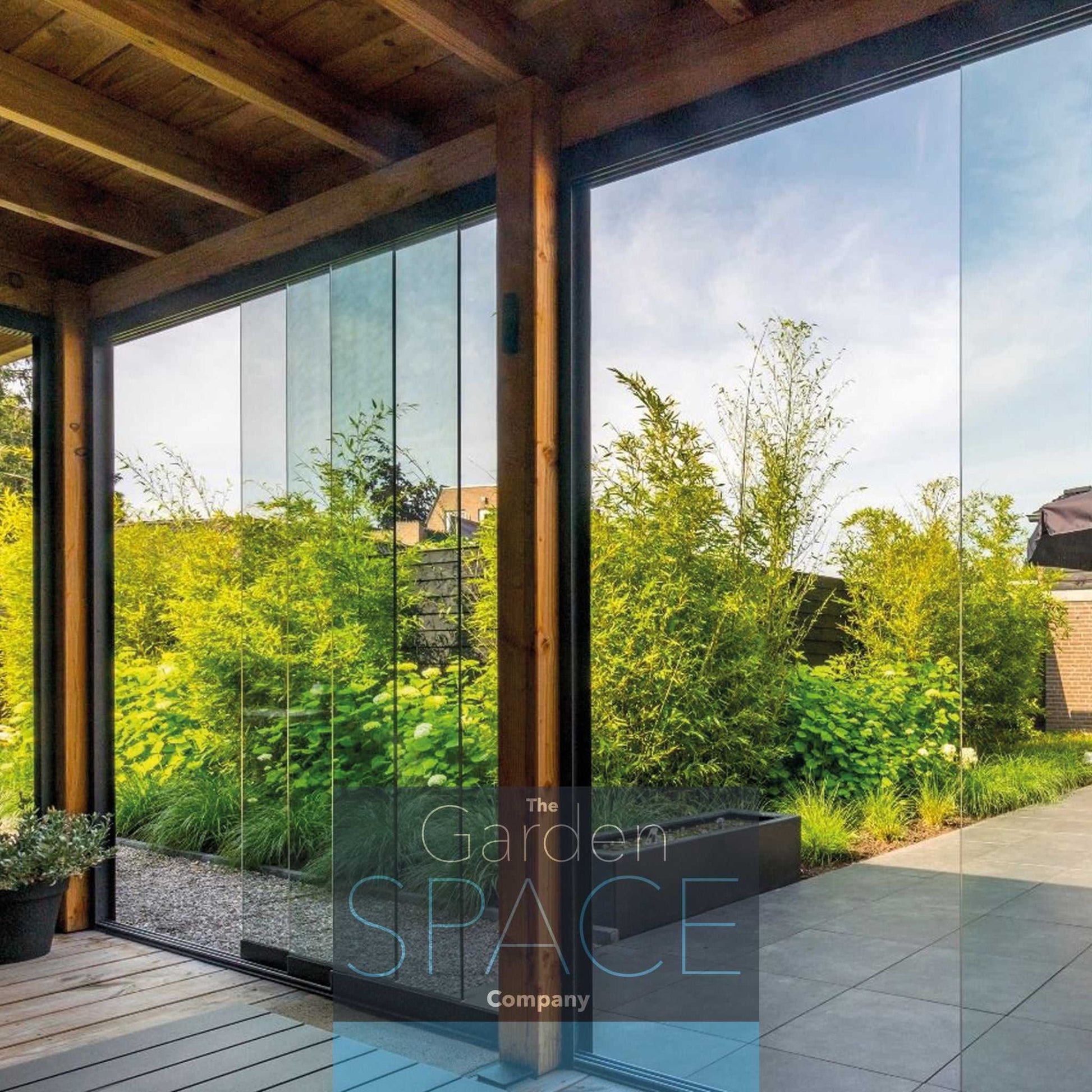

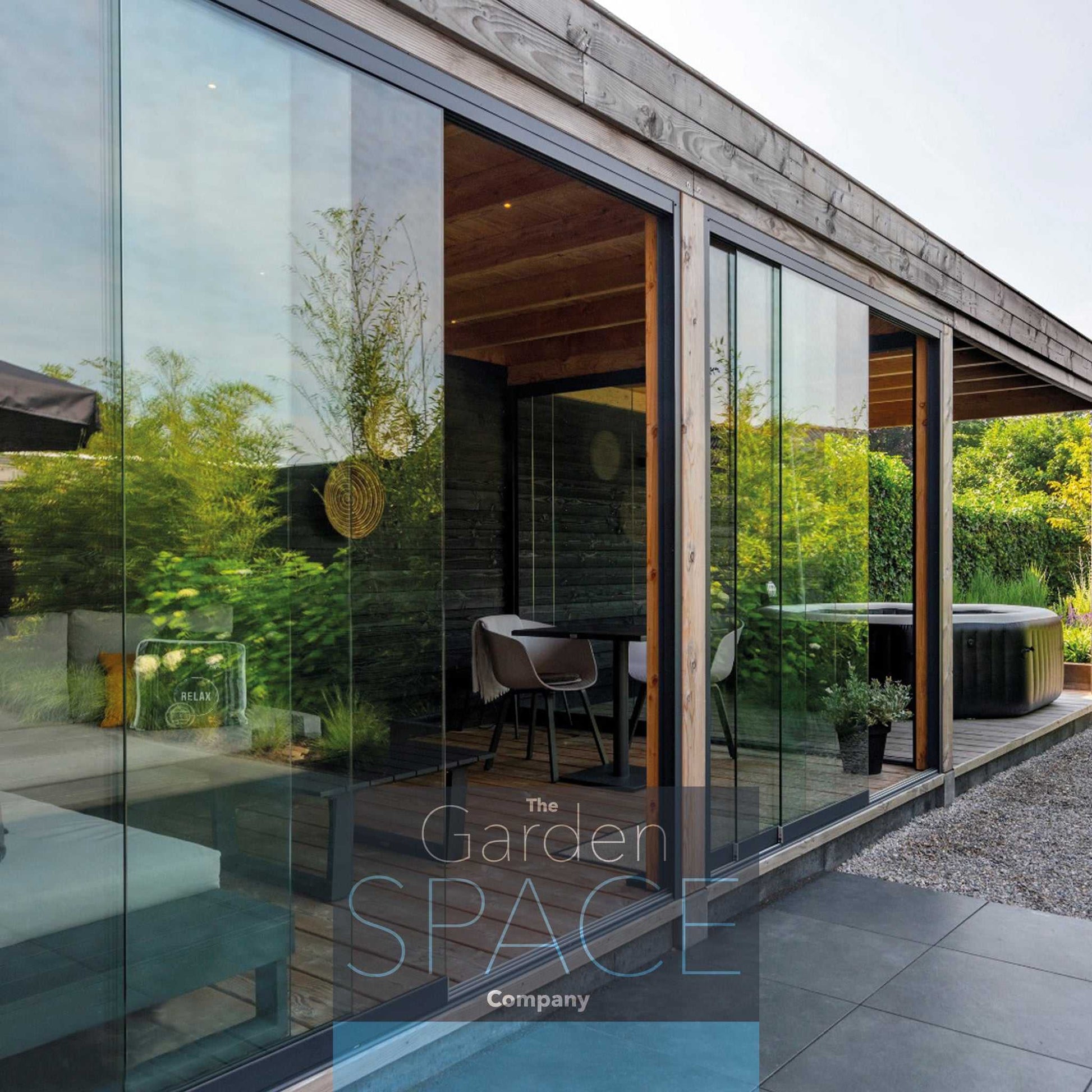

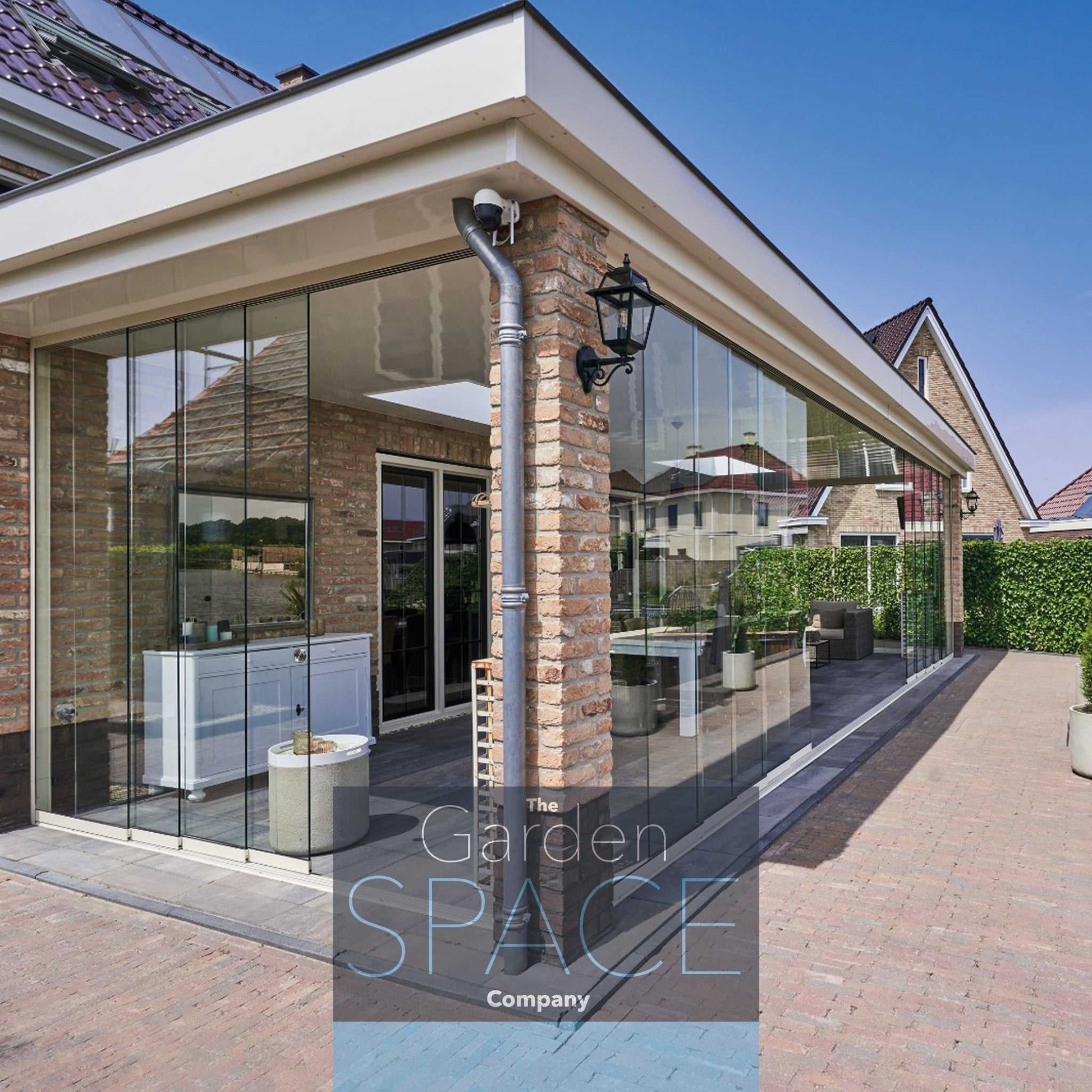

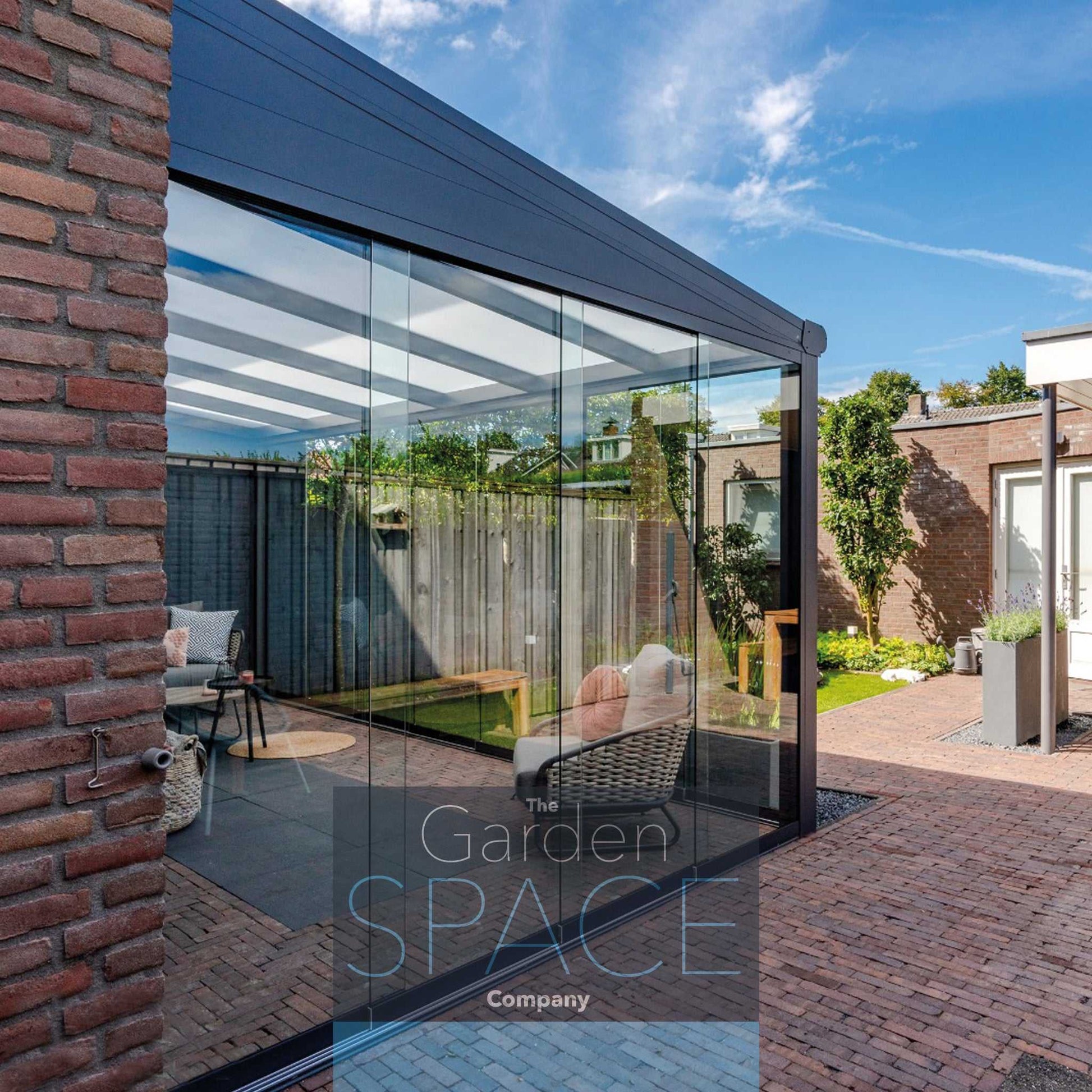

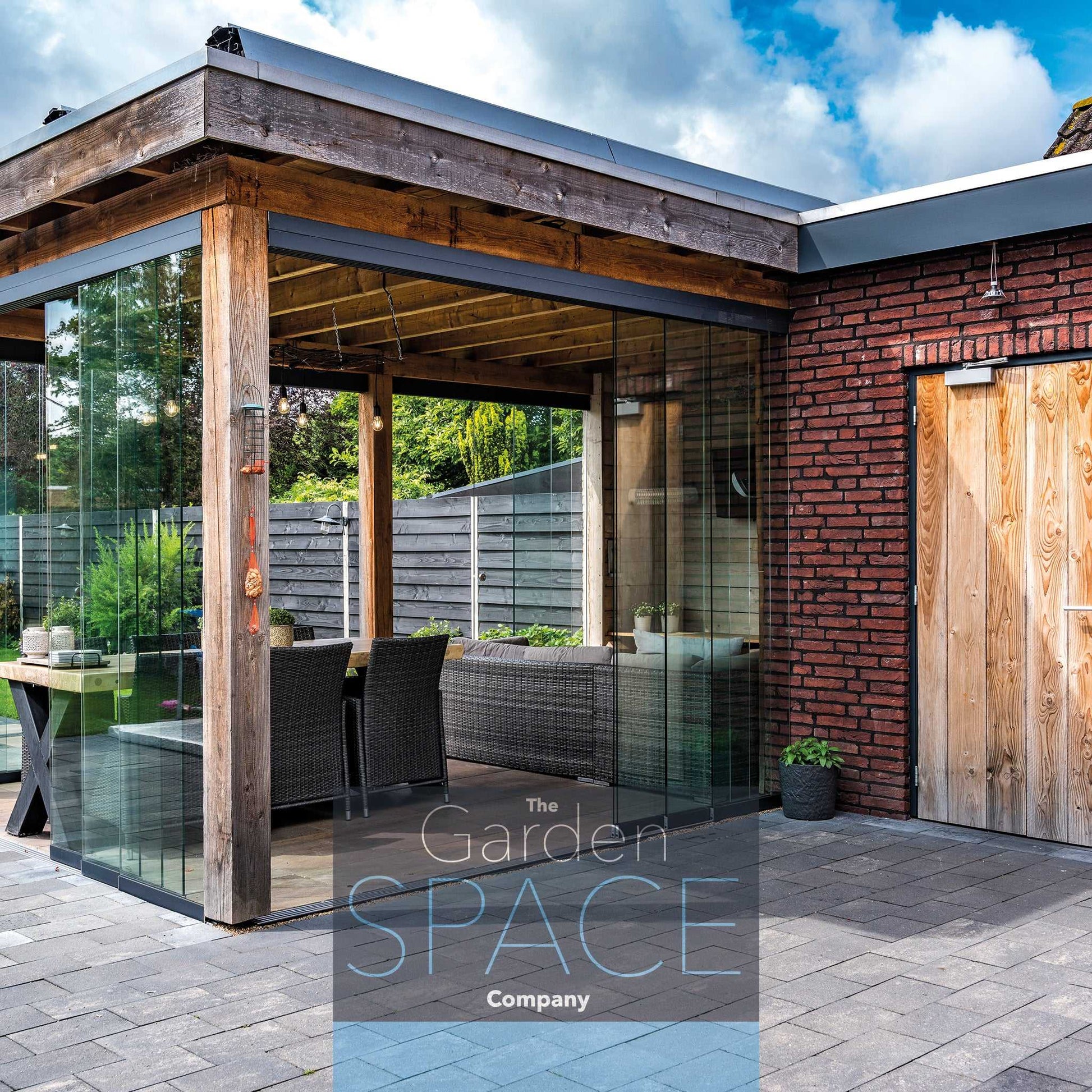

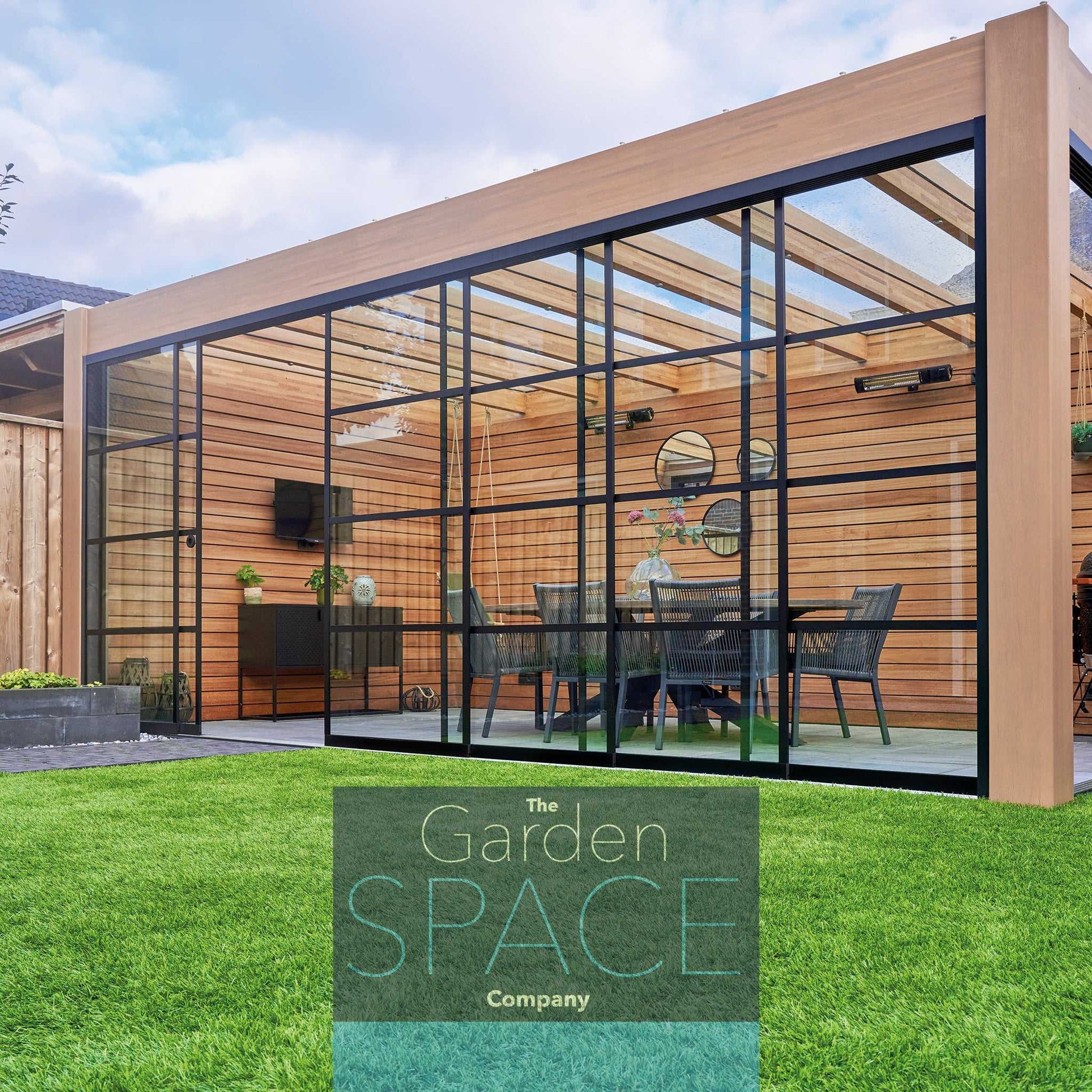

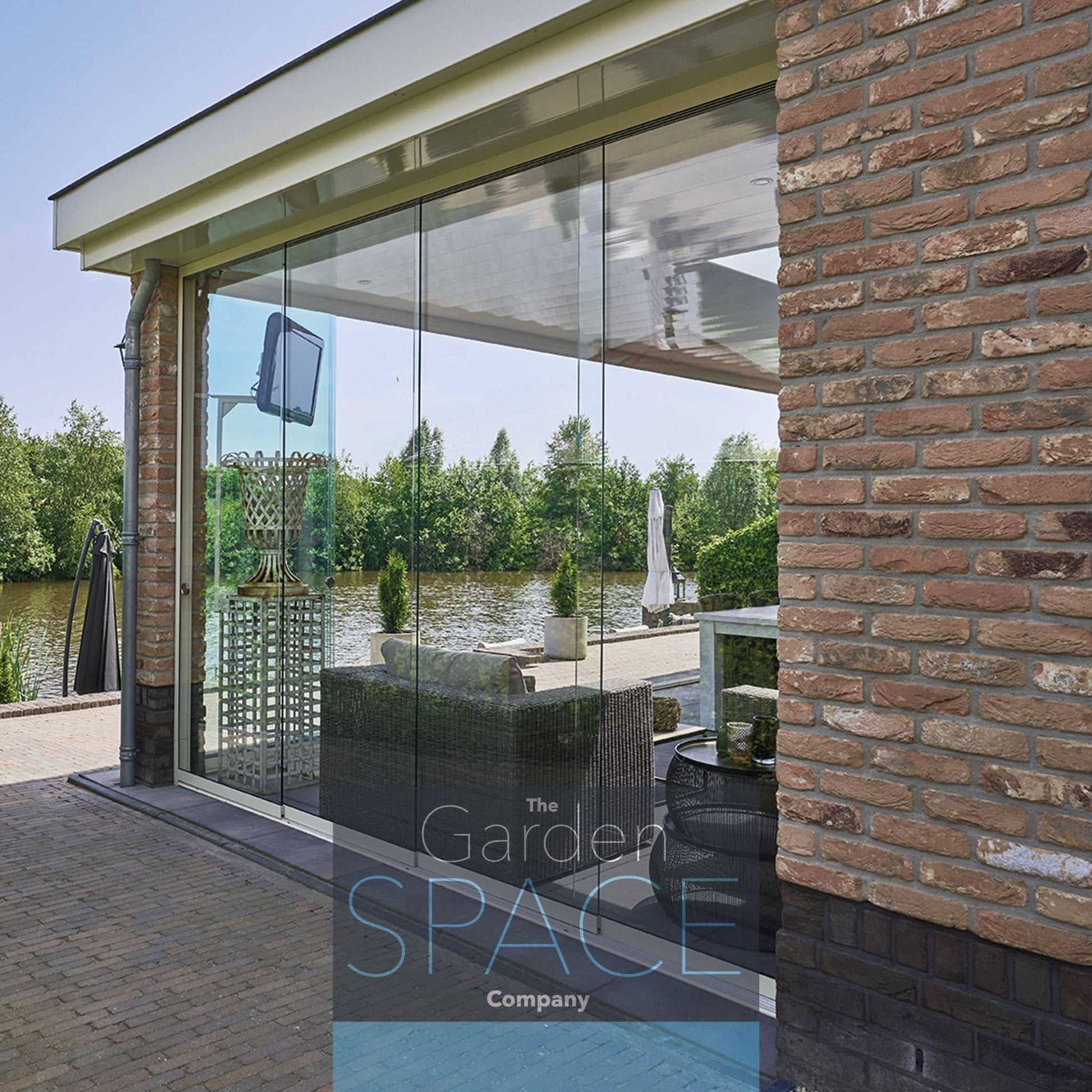

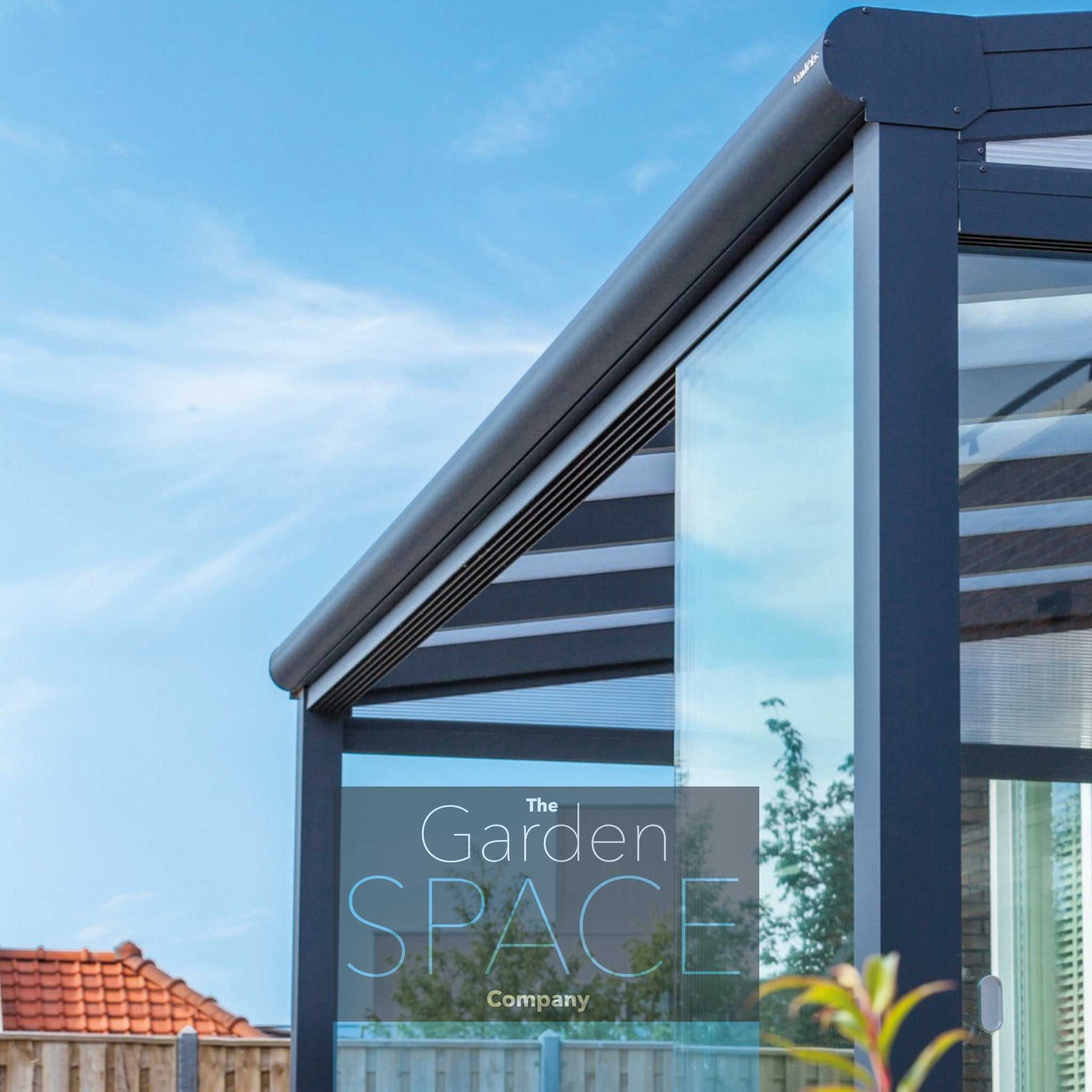

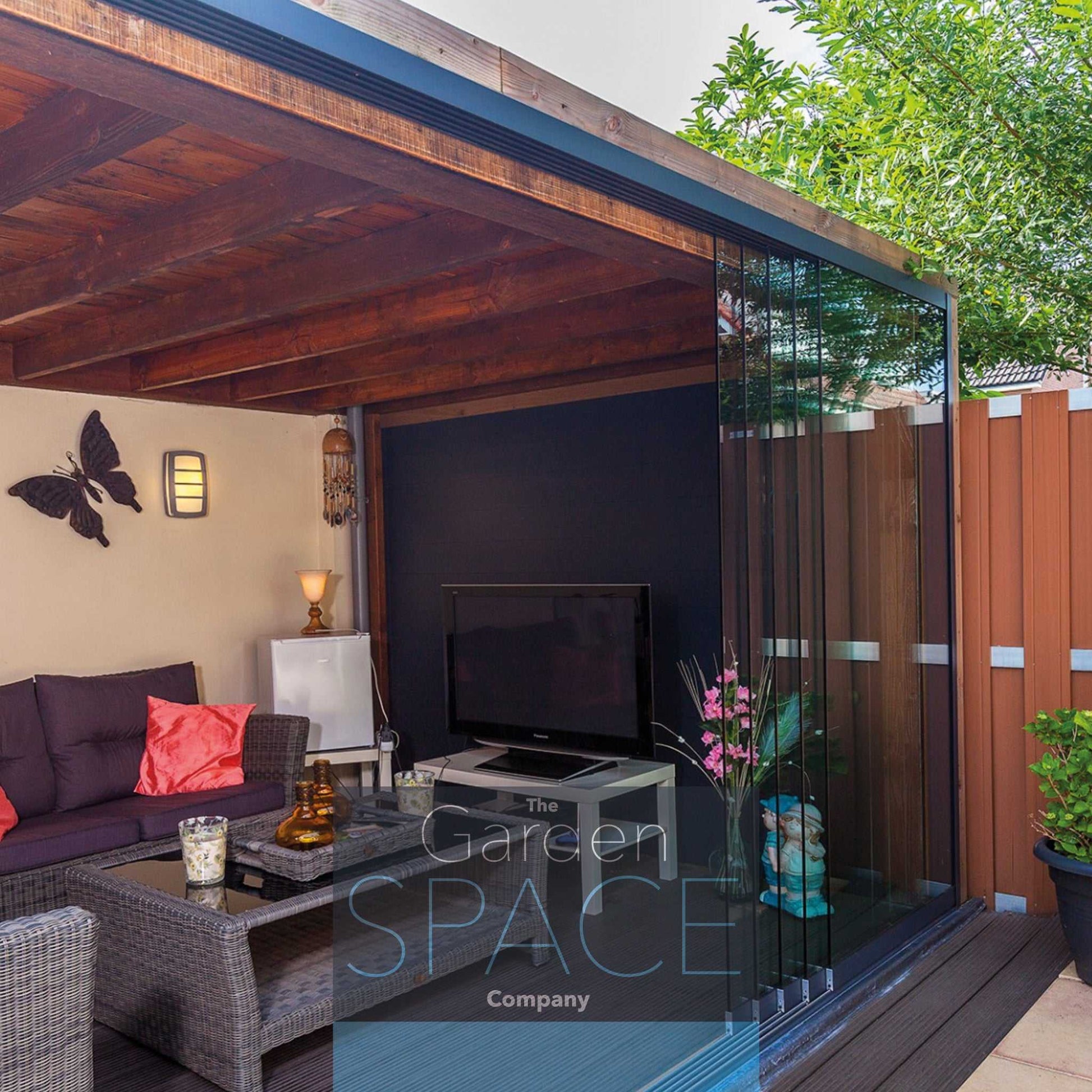

Our Glass Sliding Doors can be used to the side or front of your canopy and in fact can be fitted almost anywhere.

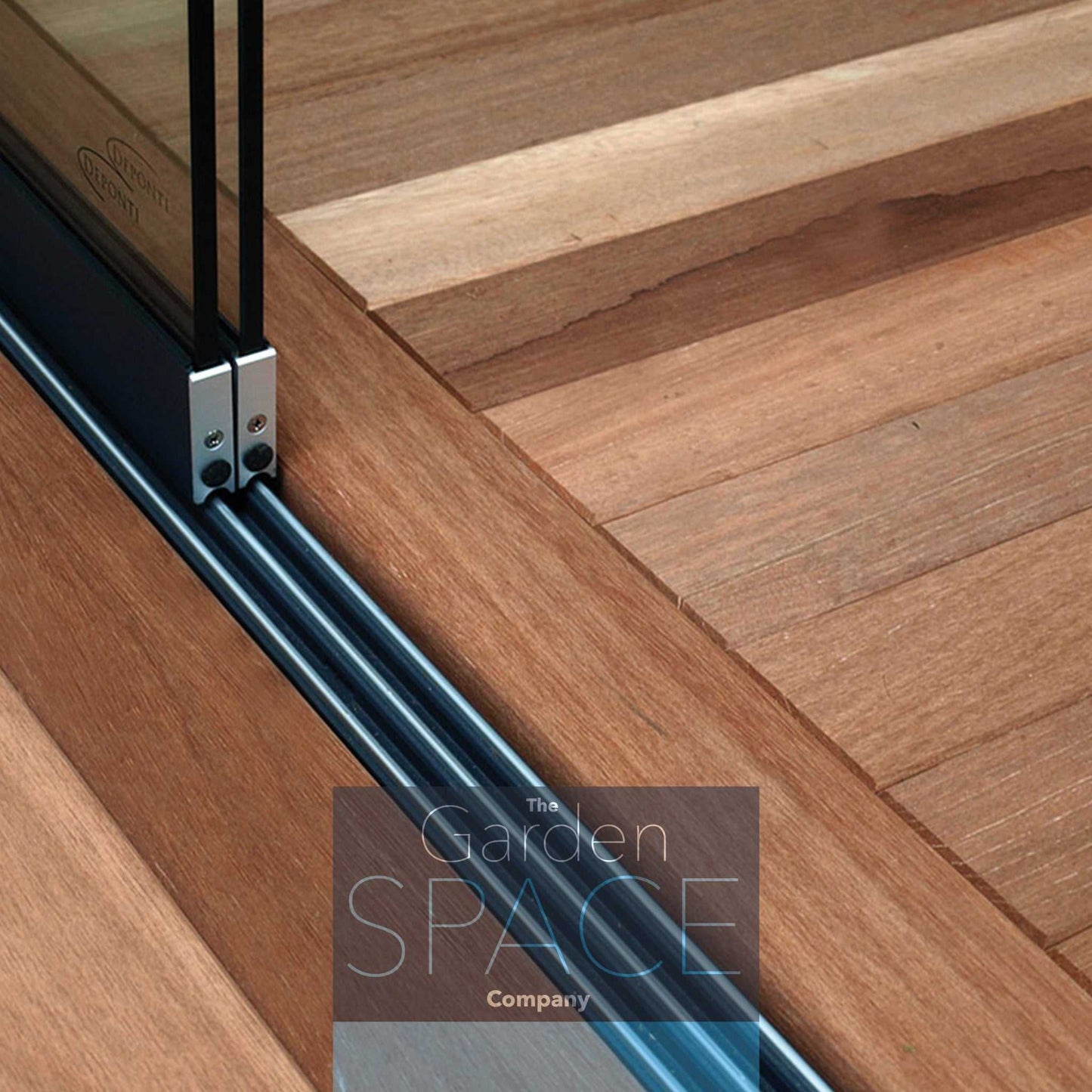

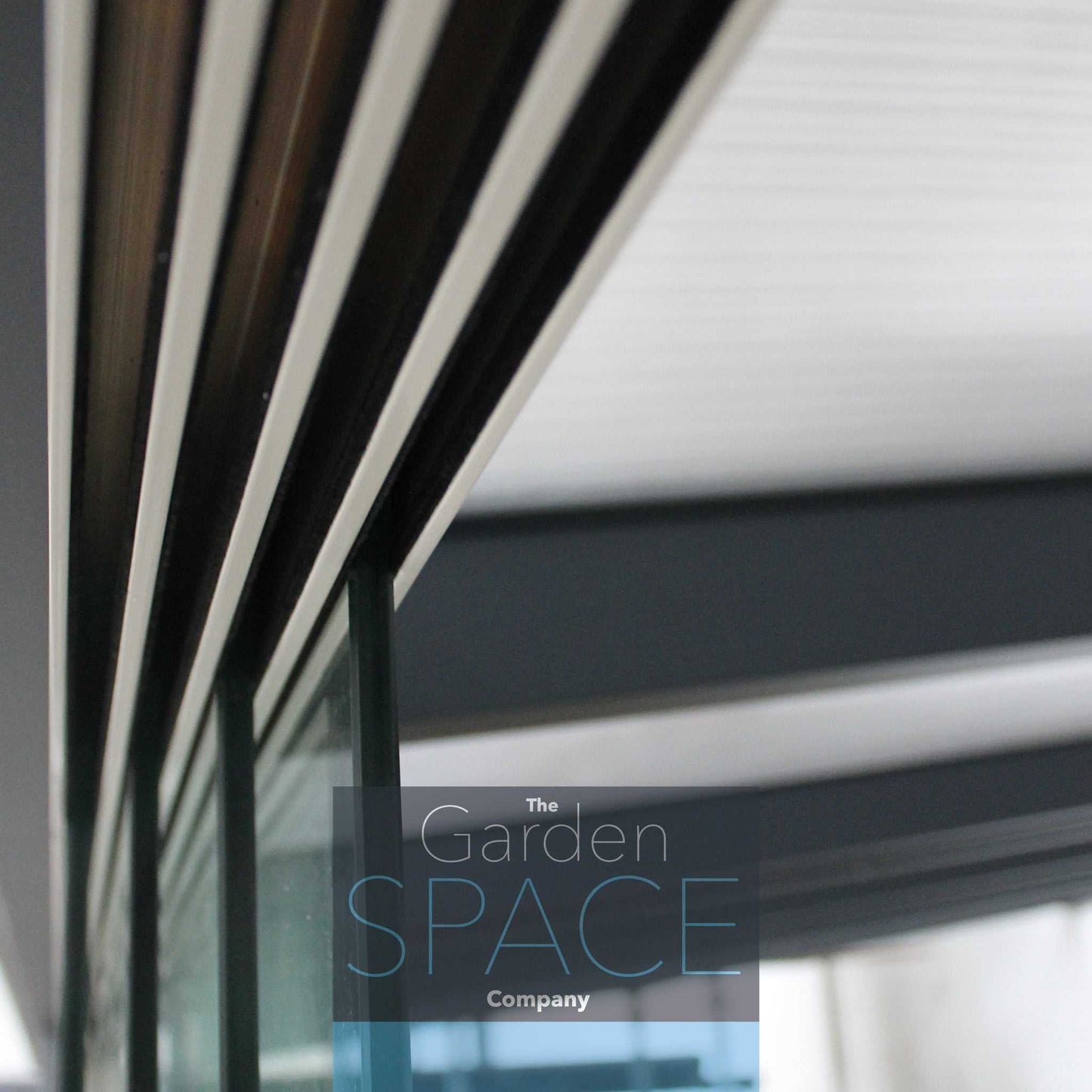

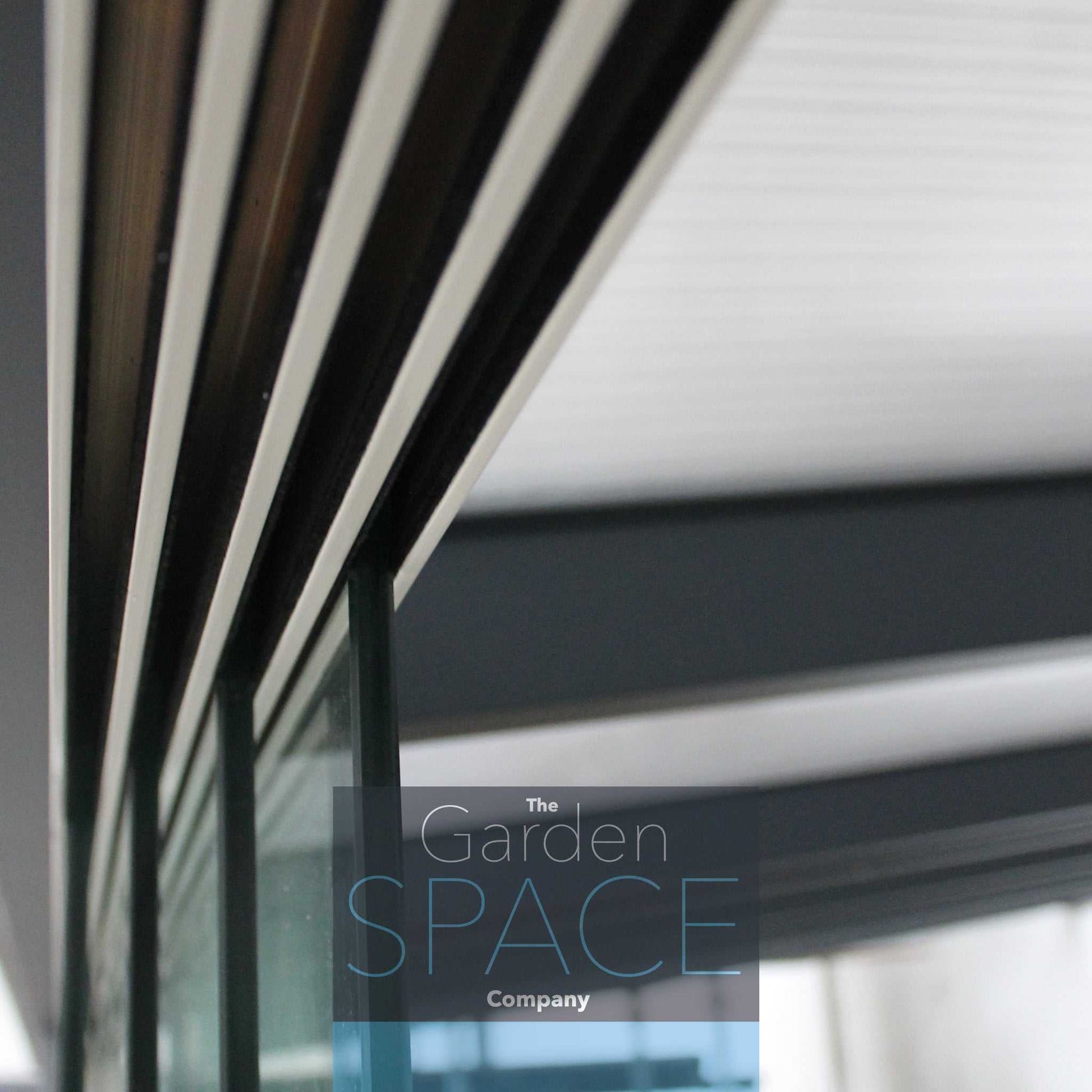

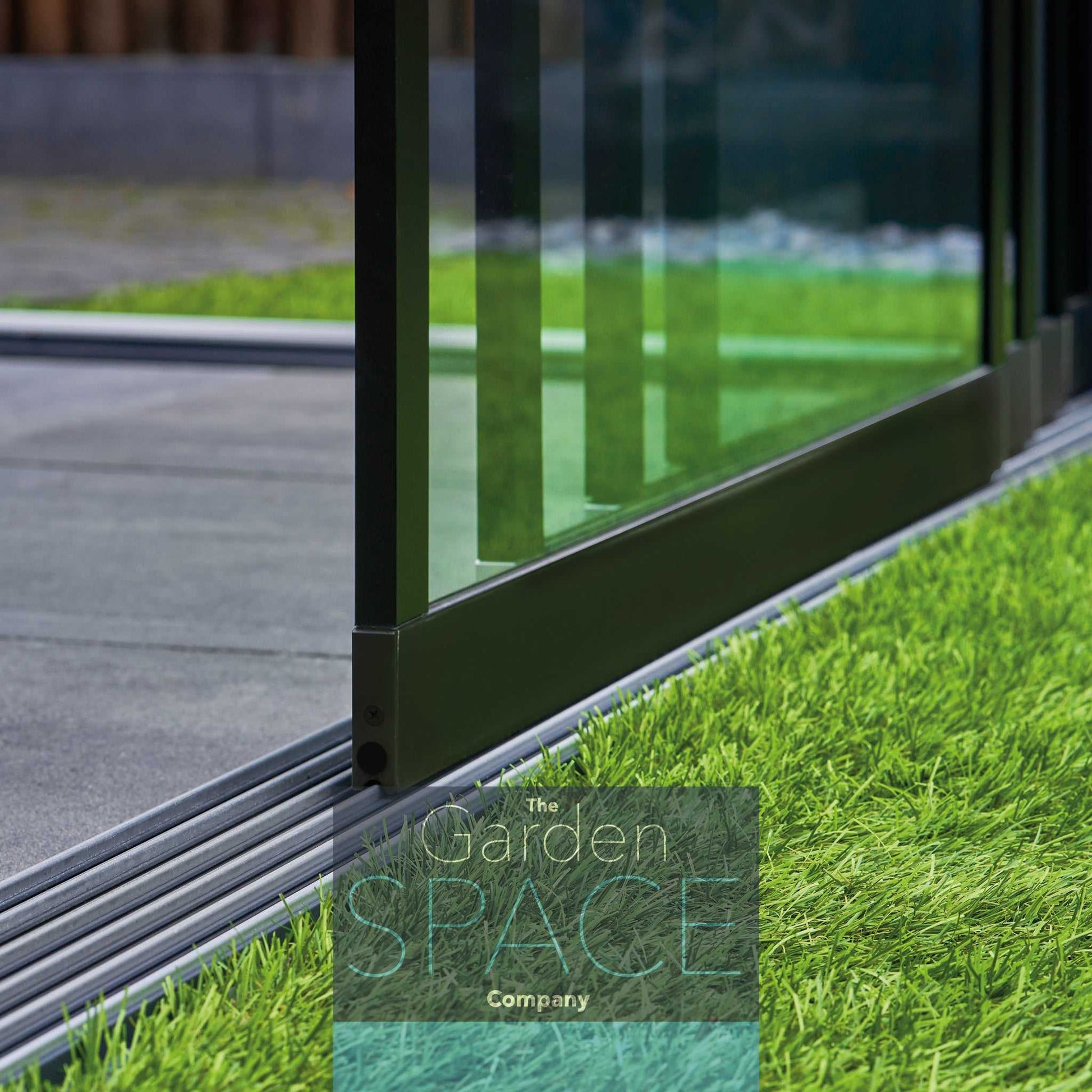

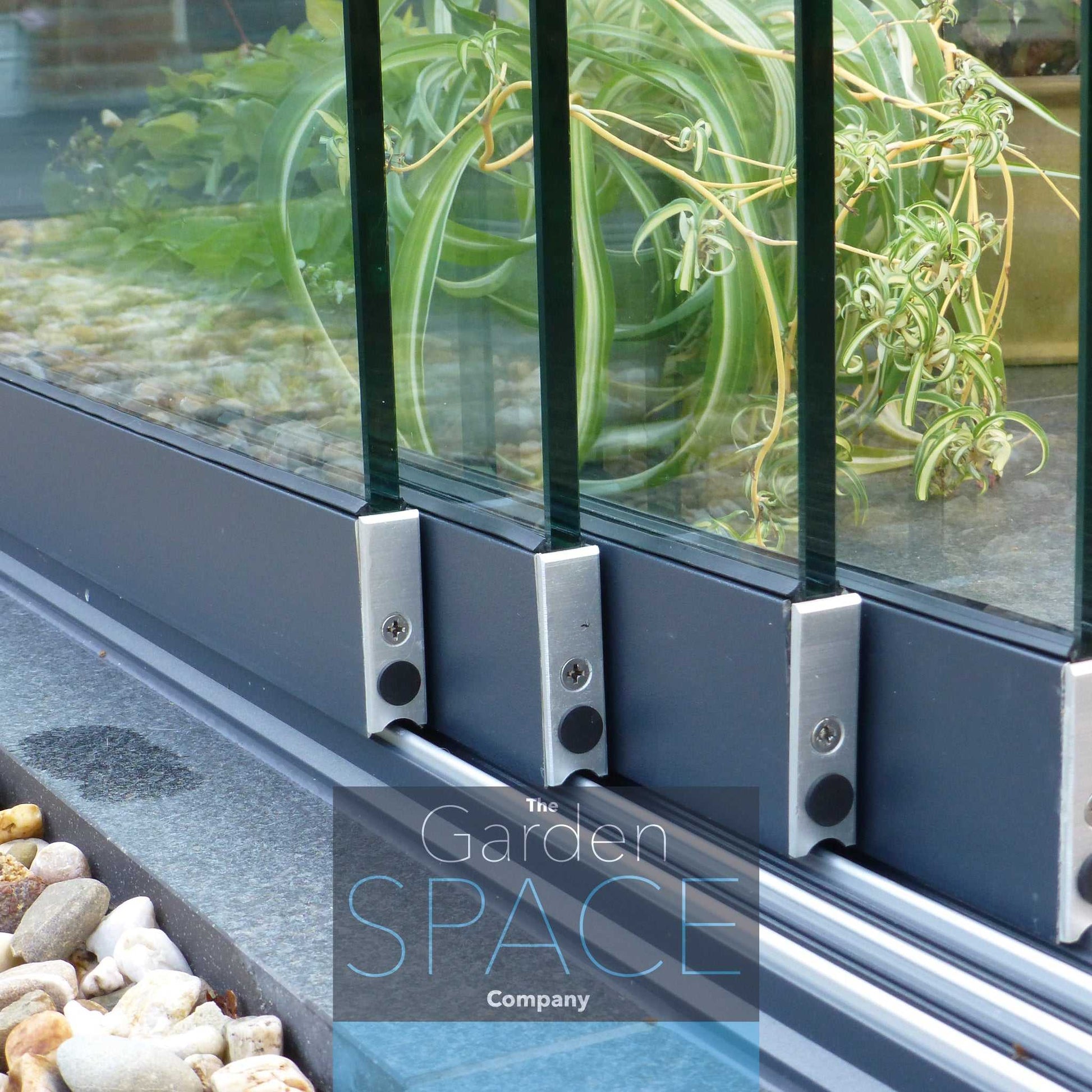

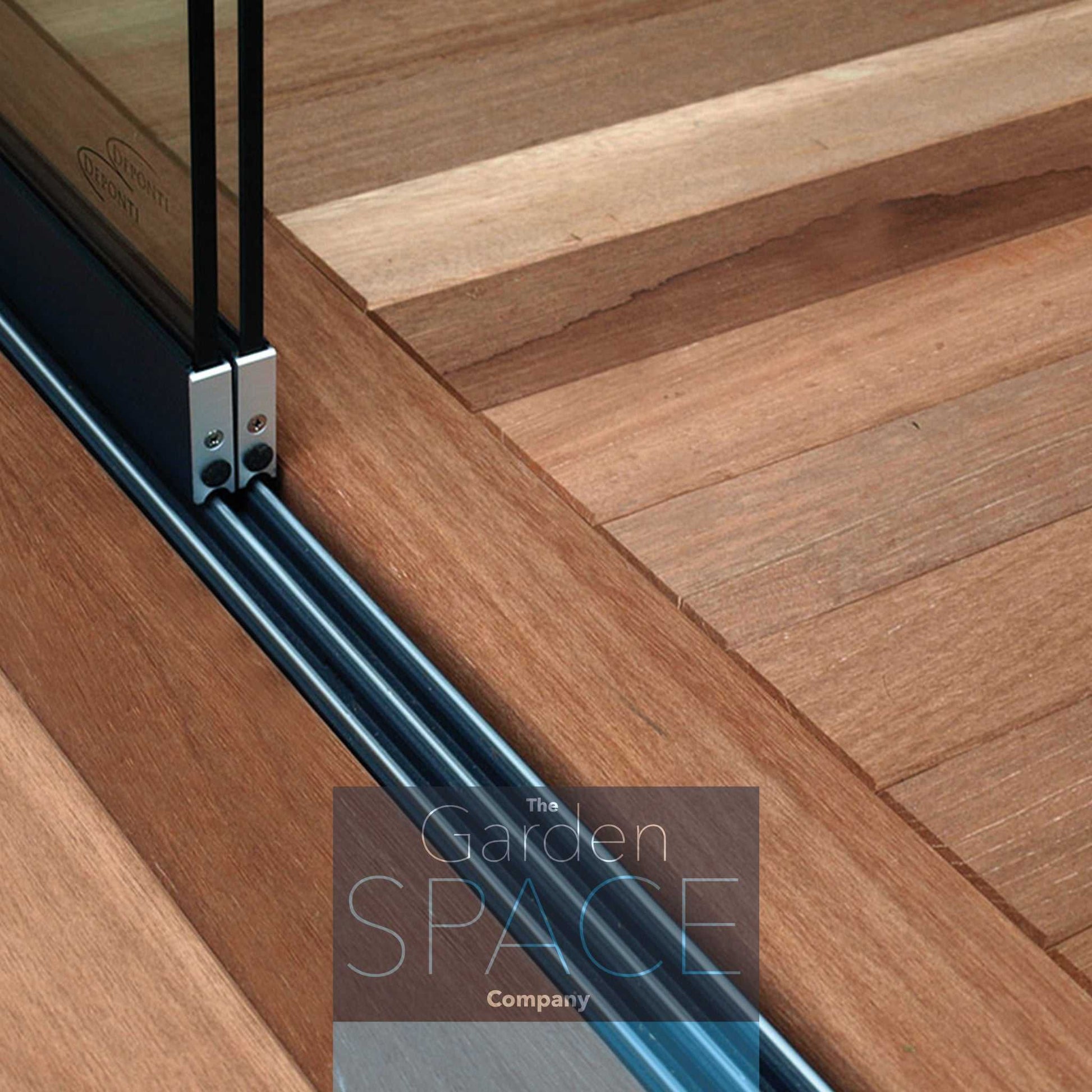

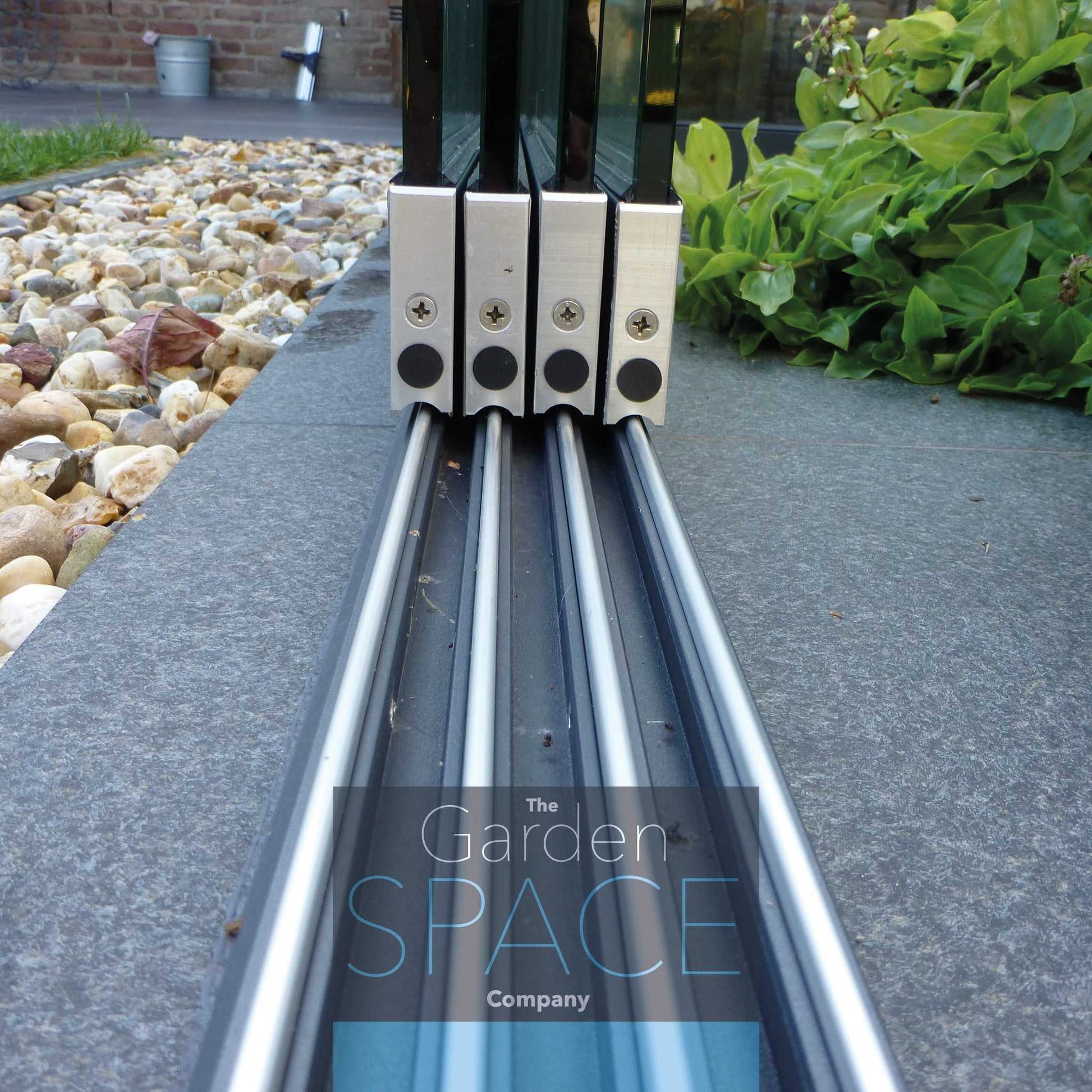

The system is straightforward with top and bottom track, side channels and glass panes that fit  between the tracks with a roller system that clips on.

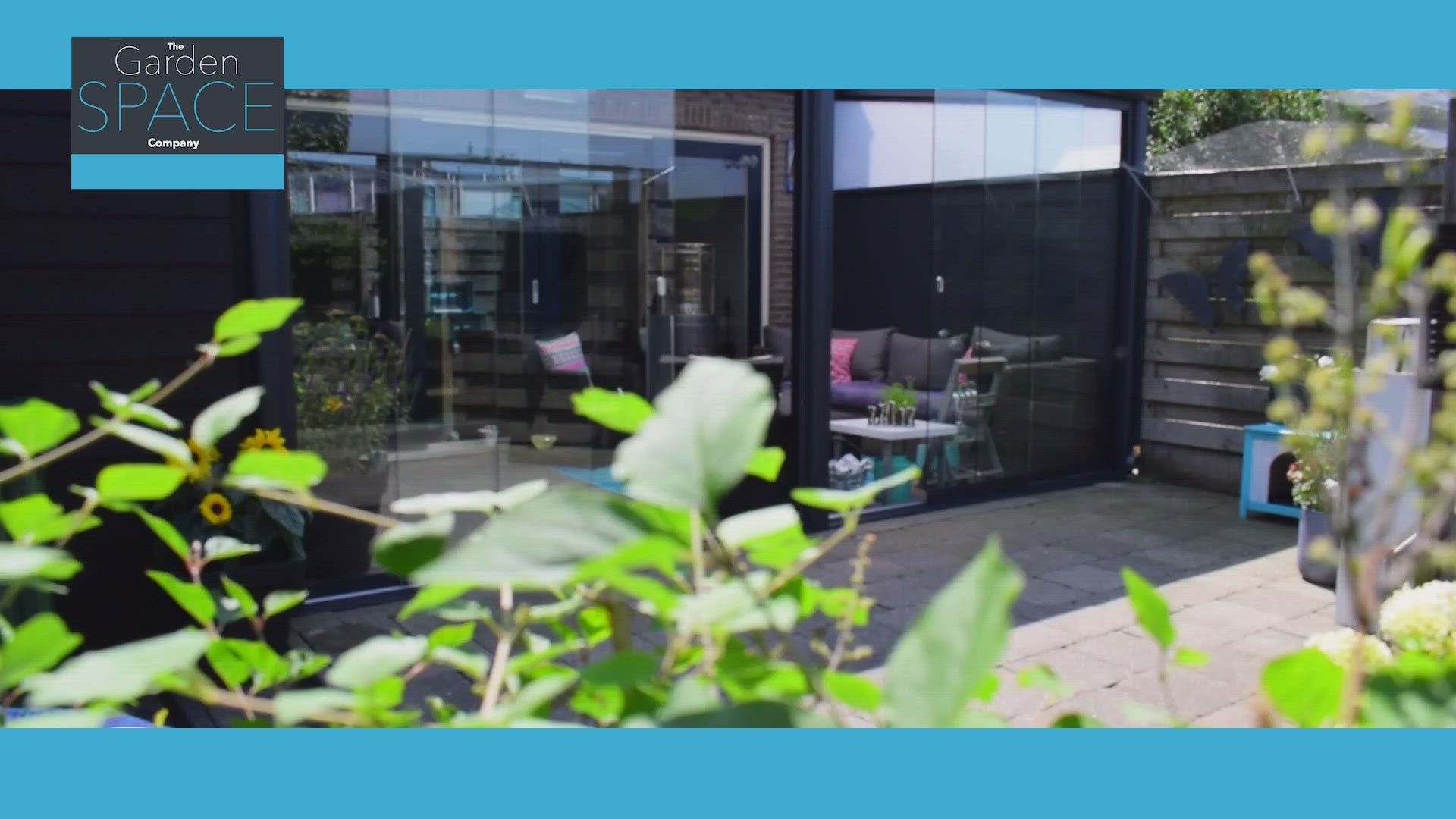

Click here to watch our installation video.

You can choose various different quantity and width combinations of glass panes to suit our space and requirements e.g. a space of 4m could be fitted with 4 x 1040mm wide panes or 7 x 640mm panes.

Panes come in the following sizes:

There is adjustment in the sliding mechanism which means a range of opening heights can be achieved as shown in the table.

Additional space can be created by using box sections to adjust the height of the opening space and also for dealing with surfaces which are not level. Click here to see our box sections.

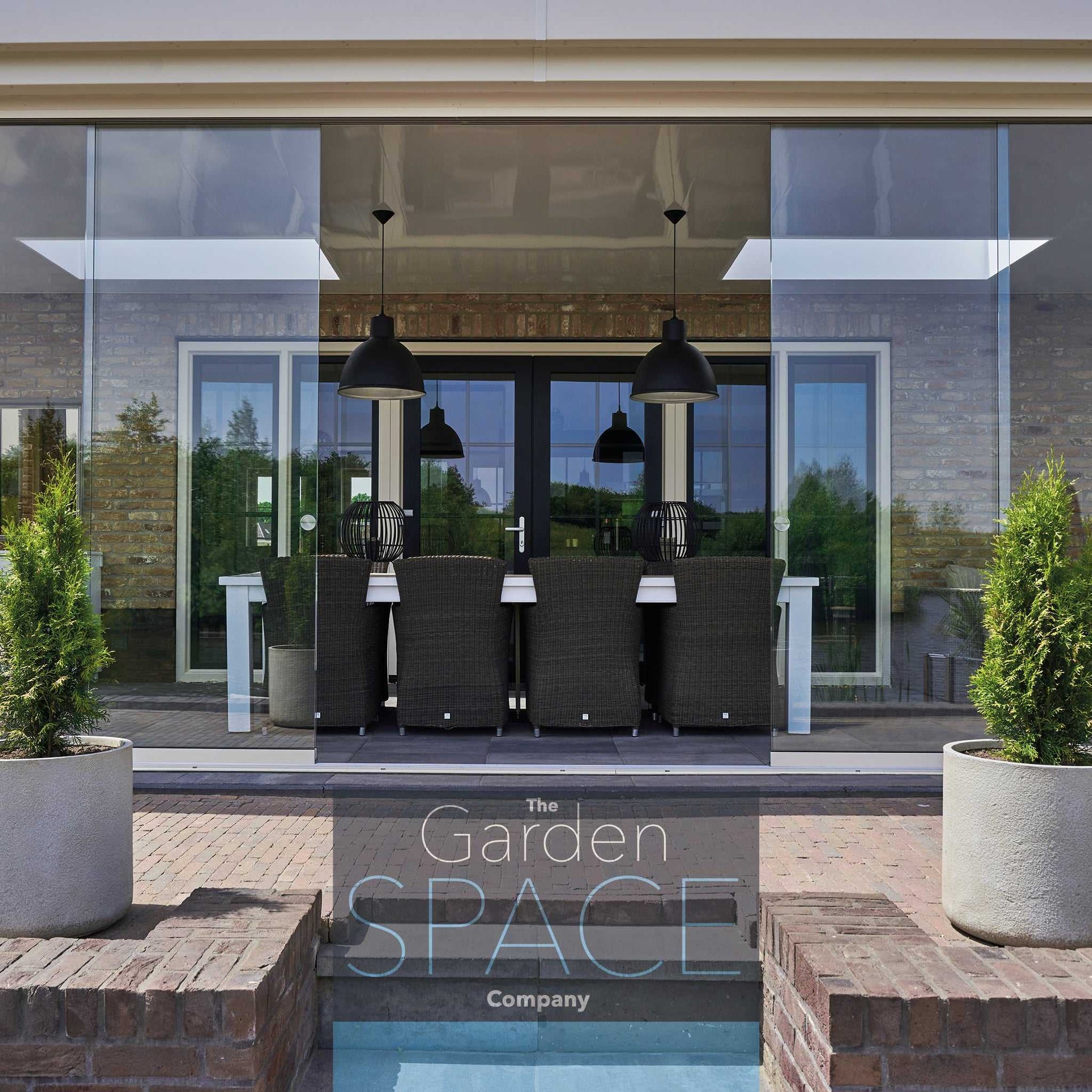

The panes need to overlap with a 35mm minimum recommended (55mm minimum if closing the middle panes against each other in the centre of the opening rather than having all opening to one side).

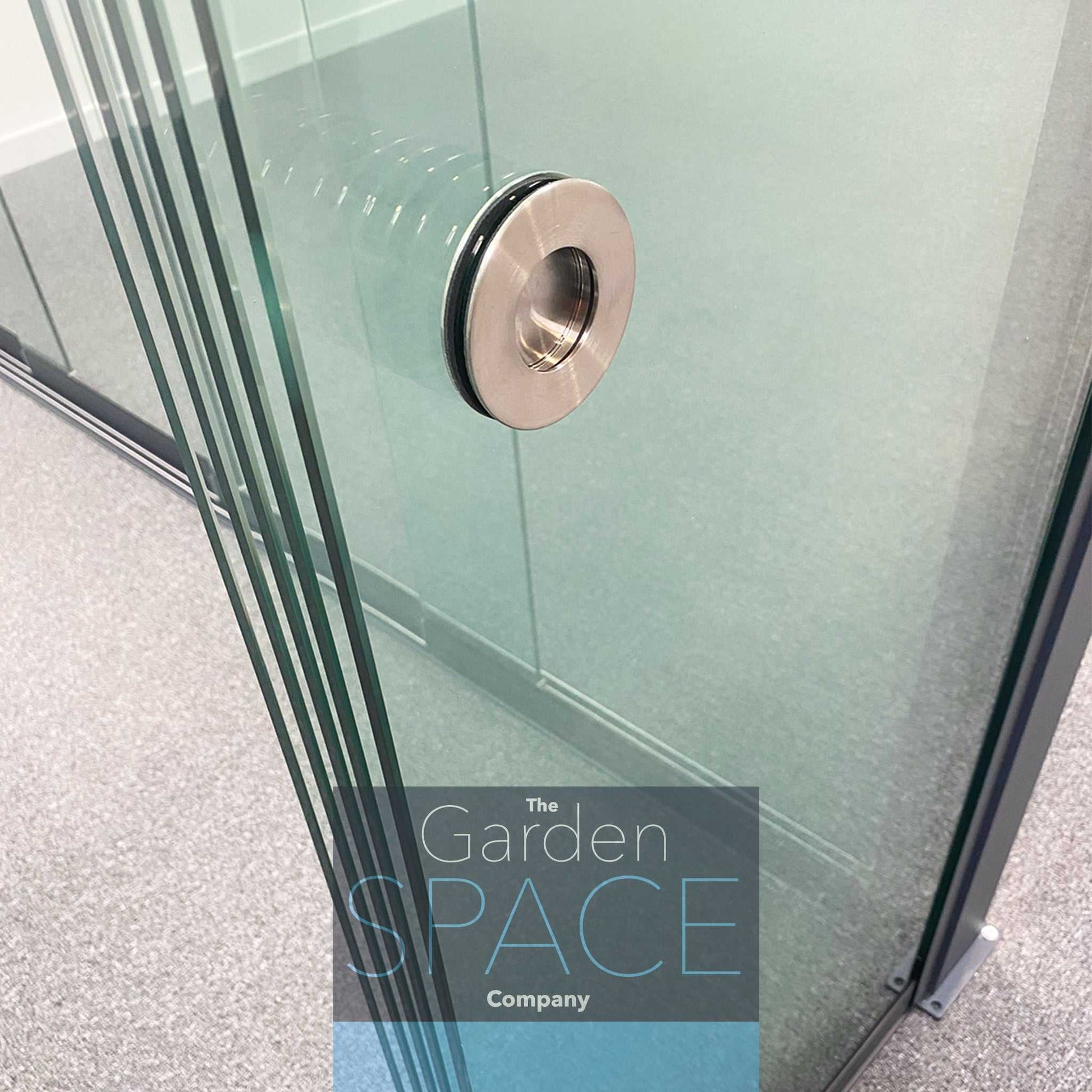

Panes are available with a handle which is fixed through a pre-cut hole in the glass (one or two normally required per system depending if opening to one or both sides).

An optional auto close system is available so that when the first door is moved to close the doors, the others are then pulled with it automatically.

Brushes that clip to the sides of the panes are available to help further weatherproof the system together with brush edge finishing channels that go into the side trims.

To simplify ordering we have pre-set kits available that include:

• 2 x U sections to go to each side of the opening
• Top & bottom tracks
• Glass panels to suit width (see below)
• One panel with in-built handle
• Auto open system for each glass panel (when more than 2)
• Weather brushes which clip onto each glass
• Brush-edged finishing trims to go into each side section

2m kit contains: 2 x 1040mm panels
2.5m kit contains : 3 x 980mm panels
3m kit contains: 3 x 1040mm panels
3.5m kit contains: 4 x 980mm panels
4m kit contains: 4 x 1040mm panels

If our kits don’t suit your needs then create your own kit from the individual parts or contact us for a customised quotation.
