thegardenspace.co

Regular price £1,936.24 +VAT
Regular price £1,936.24 +VAT Sale price 193624
Please use the tabs below to explore information and options to enhance and customise your canopy. Should you have further queries please contact us by phone or email.

Understanding Roof & Panel Options

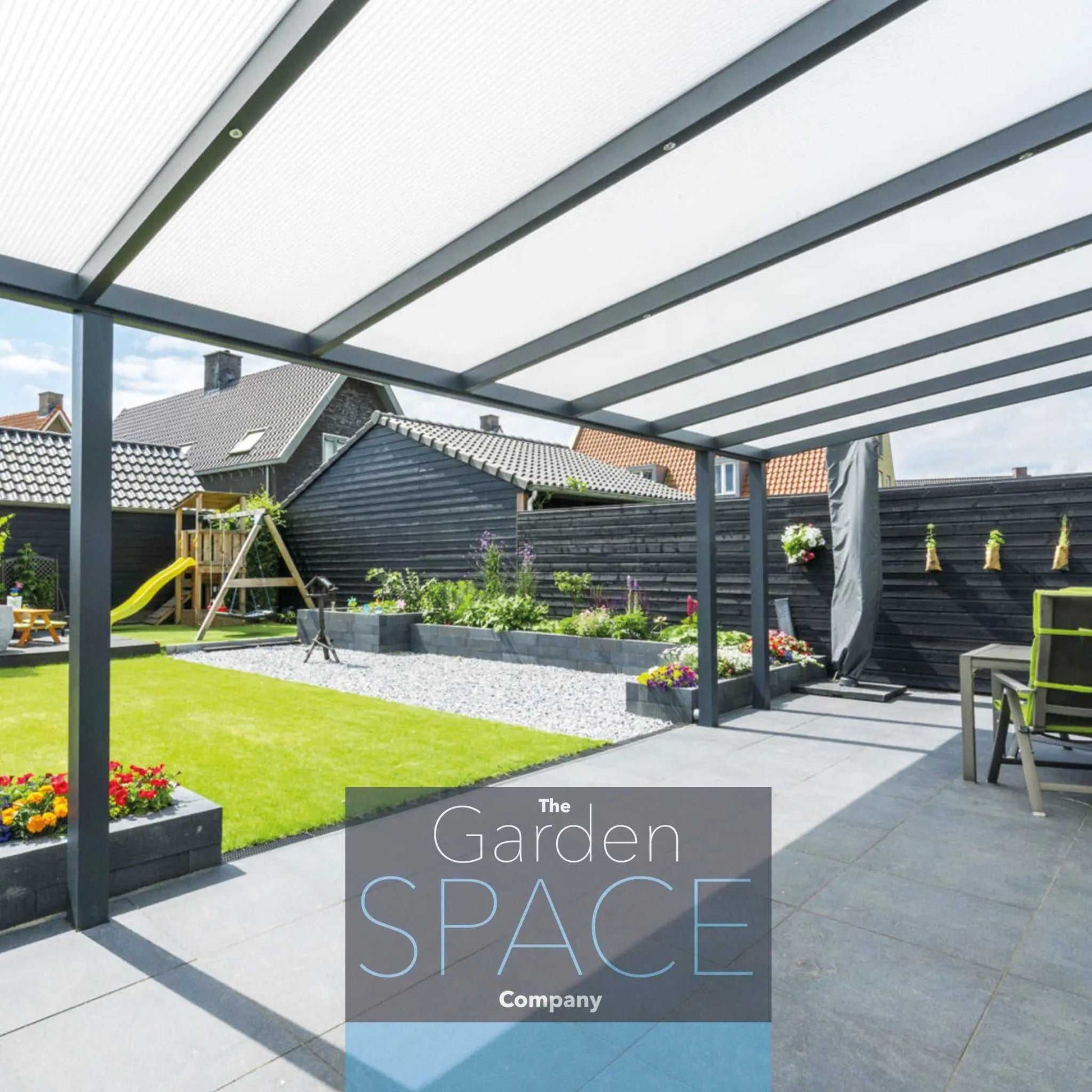

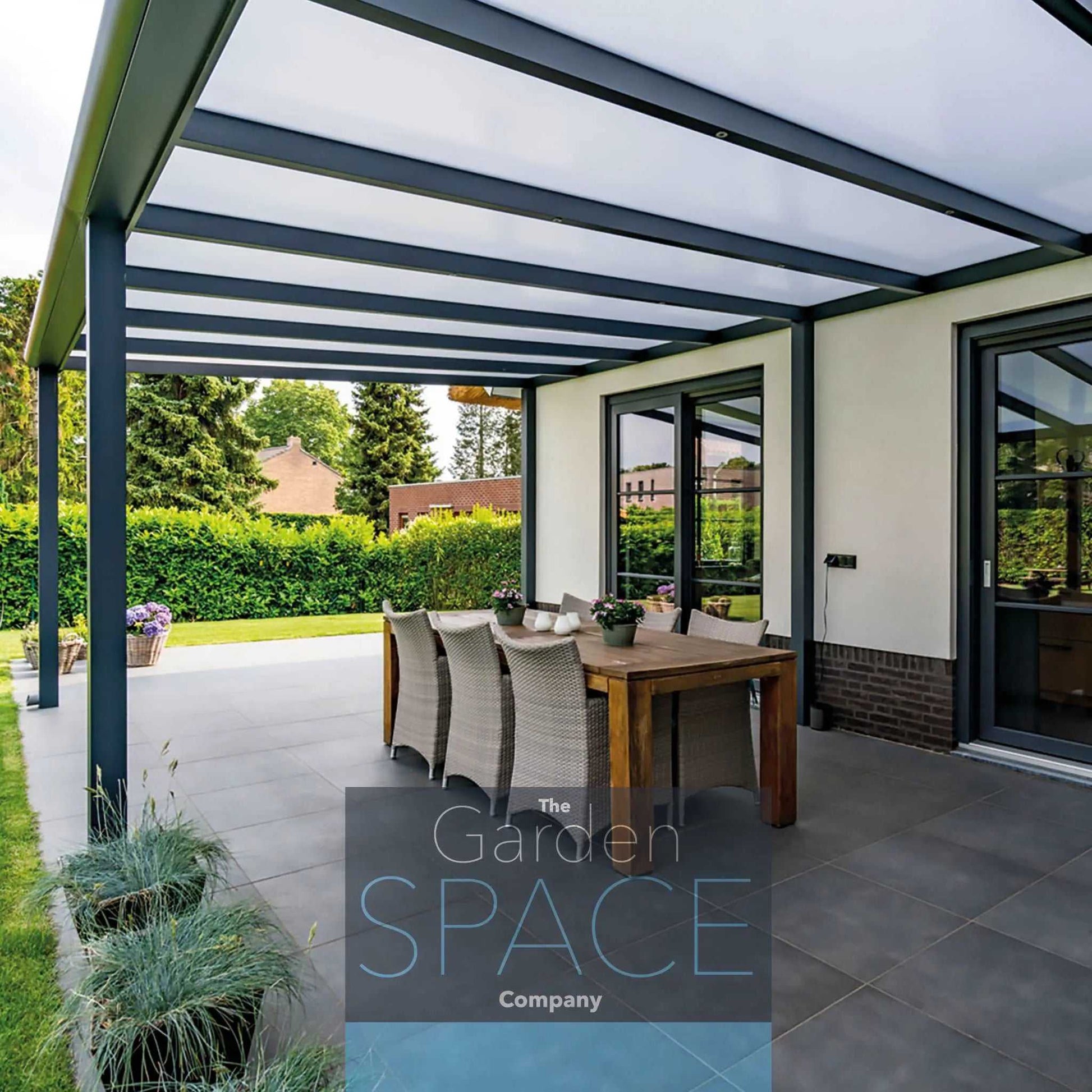

  • Opal

    White in general appearance, great for allowing in light as semi-transparent but also great for privacy as little more than rough shadows can be seen.

    The most popular choice as also does not show dirt/marks easily.

  • Clear

    This is relatively transparent but flutes (walls) inside means you can’t see through it particularly well.

    Let’s in a great deal of light.

  • Solar

    Visually similiar to Opal but with an added layer of UV Solar Protection.

    By deflecting sunlight, the silver/grey heat controlling outer layer is effective in reducing solar heat gain through the roof by up to 50%

  • Ultra Clear

    With less flutes (walls) inside it is the most translucent and almost like glass.

    Lets in the most light and gives the clearest view.

Privacy Panels

  • Privacy Panels

    Privacy Panels can create a square frame for installing a sliding glass door system or they can provide a privacy screen for example above a neighbouring fence.

    View Privacy Panels

Side Walls

  • Side Walls

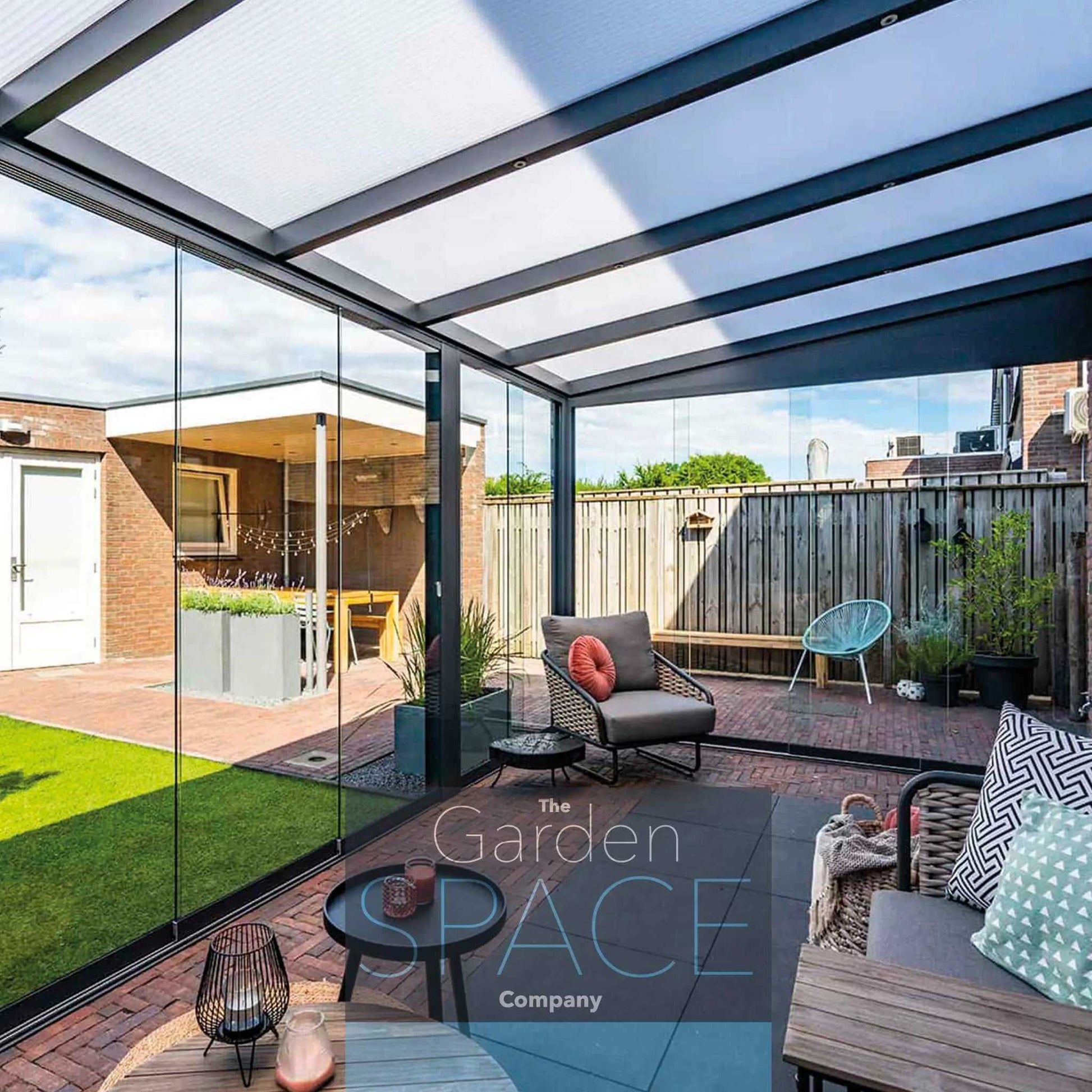

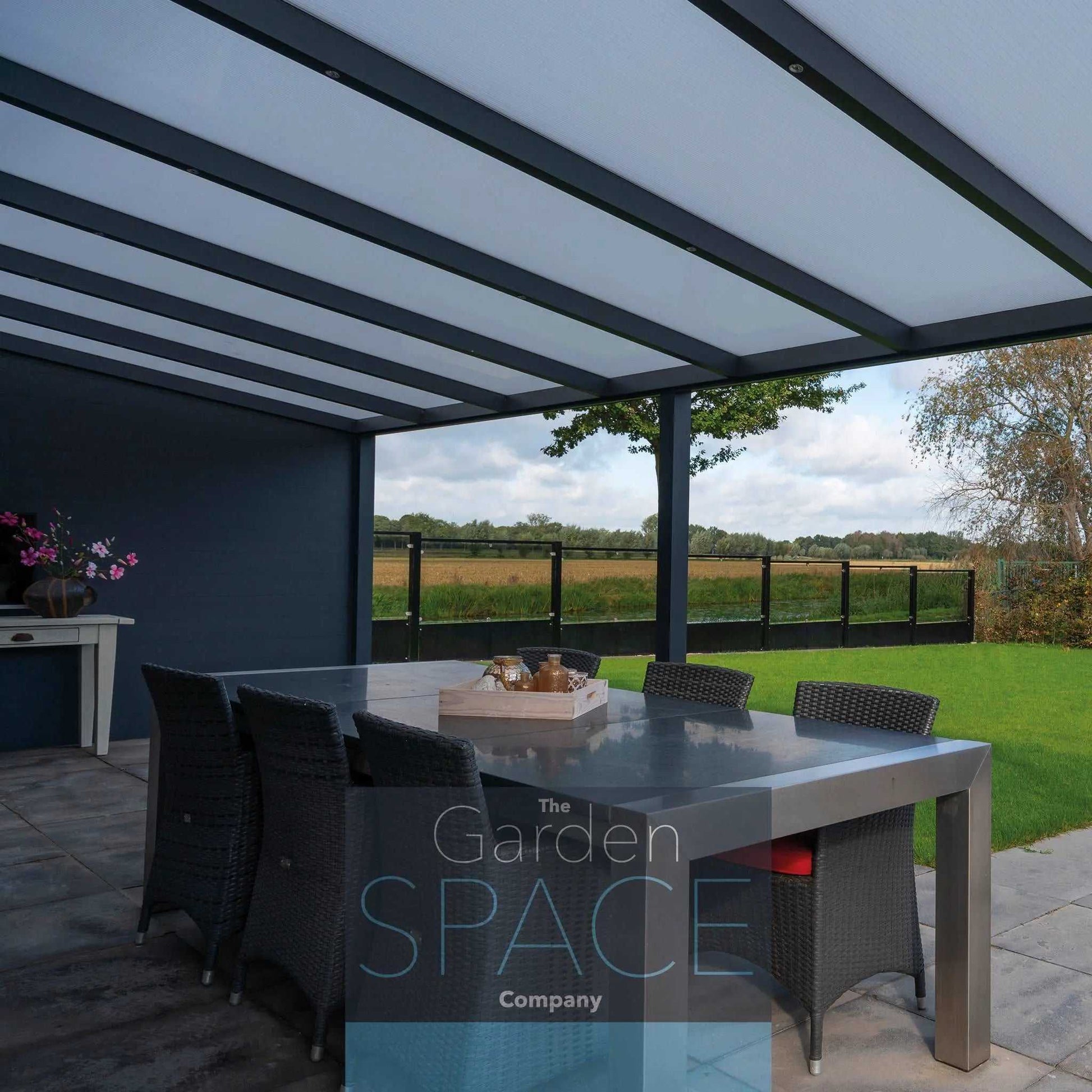

    These are great to close off a side, protecting from the weather and creating privacy (choose Opal panels) or maximising a view (use Ultra Clear panels).

    View Side Walls

Glass Sliding Door Kits

  • Glass Sliding Door Kits

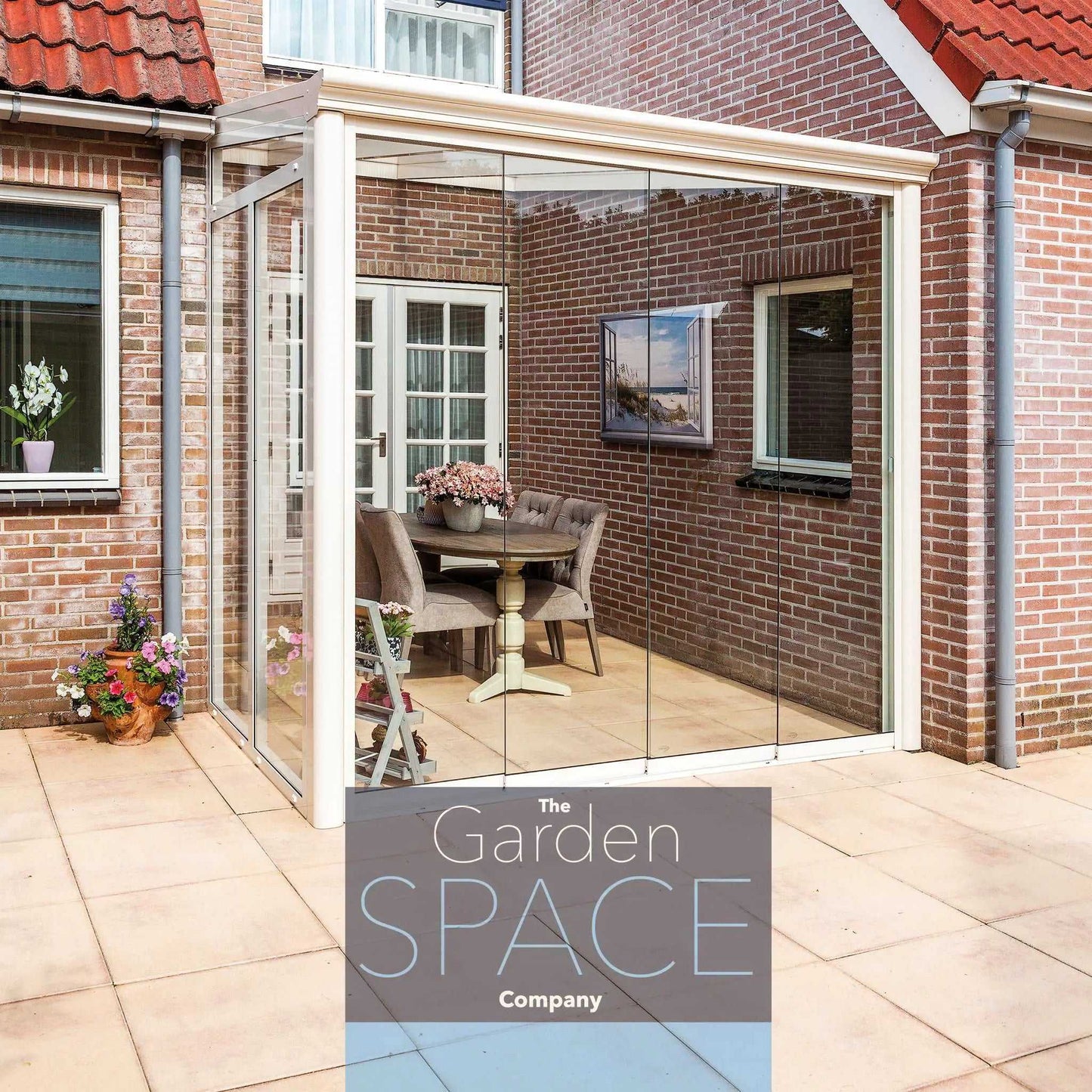

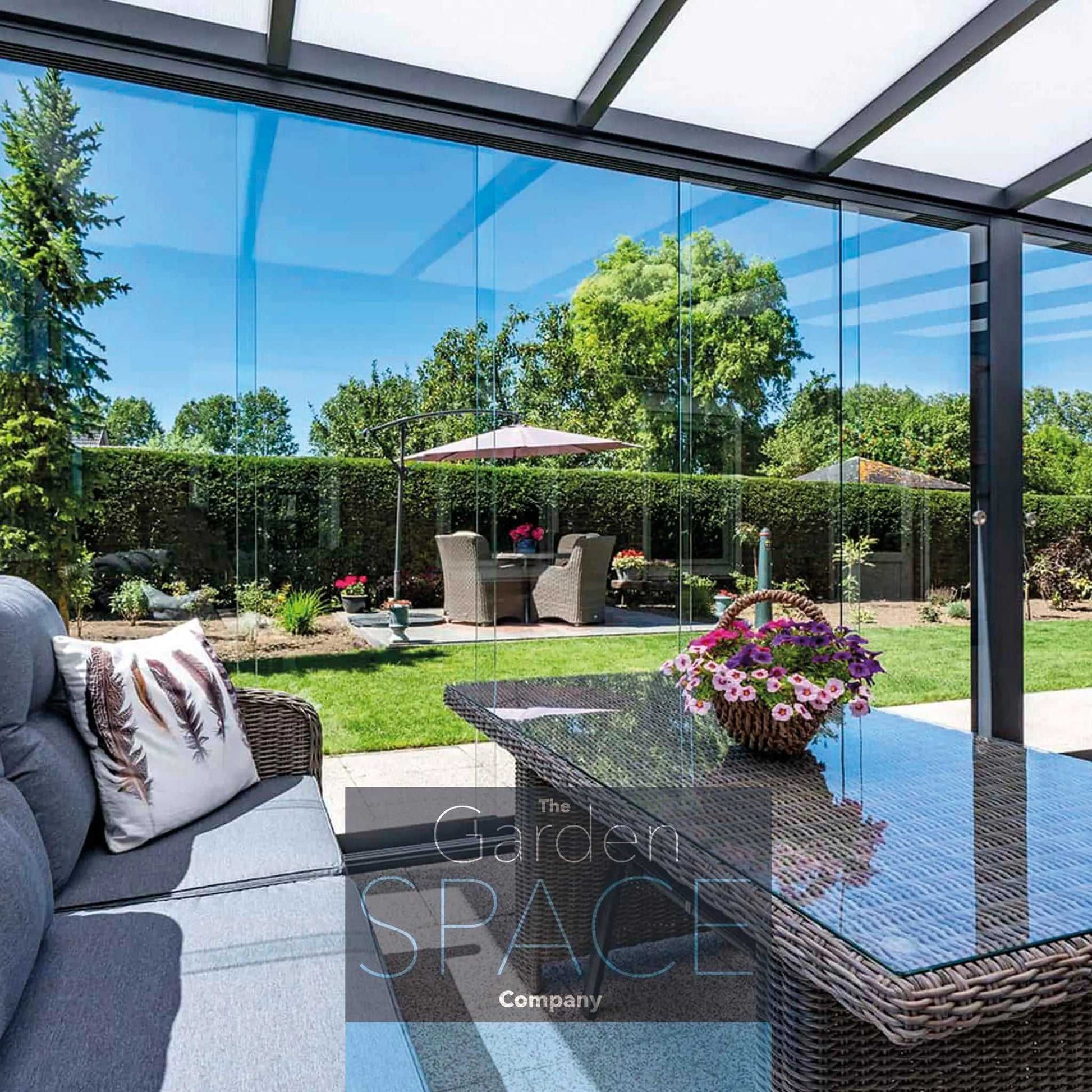

    These kits have everything you need to create a sliding door to the front or side of your canopy creating a garden room that you can enjoy whatever the weather.

    View Glass Sliding Door Kits

Aluminium Panels

  • Aluminium Panels

    This versatile system can be used in a variety of ways including to make fully enclosed sides, low level walls or whatever design your imagination can conceive.

    View Aluminium Panels

Drainage

  • Drainage

    Drainage can be achieved by drilling a hole in the gutter above one or several legs and a suitable aperture at the base of the leg or legs. Should you wish to have the water directed to a drain or other location then our downpipe outlet can be used to connect a downpipe underneath the gutter and this can be ran to a suitable point of choice.

    View all our Drainage Products

Lighting

  • Lighting

    Make your canopy even more useful with lighting set into the roof beams to provide ease of use at night and also an attractive feature.

    View all our Lighting

Useful Information

  • Customising The Size

    The canopy size can be adjusted by trimming the posts, bars and sheets to suit. If trimming sheet lengths, please ensure you purchase some anti-dust tape which is used at each end of the sheet to stop dust and insects entering the sheets. Also, if trimming we recommend purchasing touch up paint to touch up any cut edges to ensure the metal is protected.

    If joining canopies together, a post would need to be located below the join and the gutter would need to be lined internally with butyl sealant tape.

  • Posts

    4060mm widths come with 2 posts, 5060-8060mm widths 3 posts and 9060-12060mm widths 4 posts. Posts must be set with a maximum of 4m between them and there must be posts within 350mm of each end.

    Posts with base plates come 2.5m tall and plain-ended posts come 3m tall.

    Posts can be fixed by bolting the footplate into the ground, by bolting the footplate to a concrete block fixed under the ground or by sinking the posts itself into the ground.

    If you are fixing a post next to a wall where the base plate can not be used nor the ground excavated to sink the post, then an internal footplate can be used to fix the post to a suitable floor surface.

    Additional posts can be purchased if required for aesthetics or customisation.



Fitting Instructions

Help Choosing Your Canopy

  • Need help choosing your canopy?

    All of our incredible canopies are showcased in our brochure. Click the link below for more information.

    Download Brochure

View full details

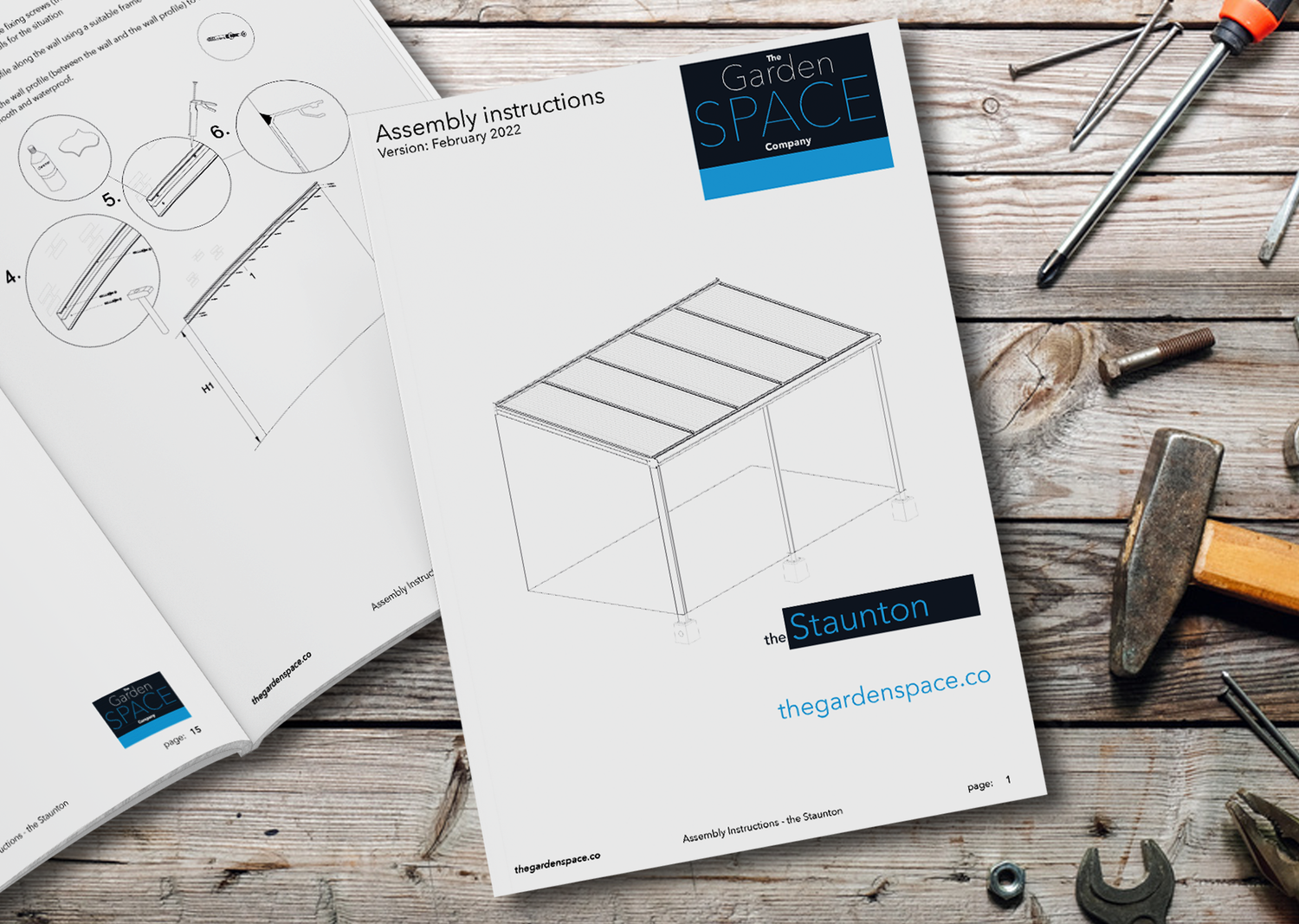

Want more information about fitting The Staunton?

Download our fitting instructions

Need help choosing your canopy?

All of our incredible canopies are showcased in our brochure. Click the link below for more information.

Download Brochure
  • Shipping Information

    We aim to deliver our products using our own transportation to ensure products are delivered without damage and with the highest level of service.

    For more infomation please see the delivery information page, or contact us via phone or email.

    Find out more
  • Questions or Queries?

    Please check out our FAQ for more information regarding the canopy.

    Should you have any further questions or queries regarding The Staunton, please do not hesititate to contact us by phone or email.
